Tread Settings-Two-Position Steel Wheels

Wheel tread can be adjusted by exchanging the wheels from side to side and by using spacers.

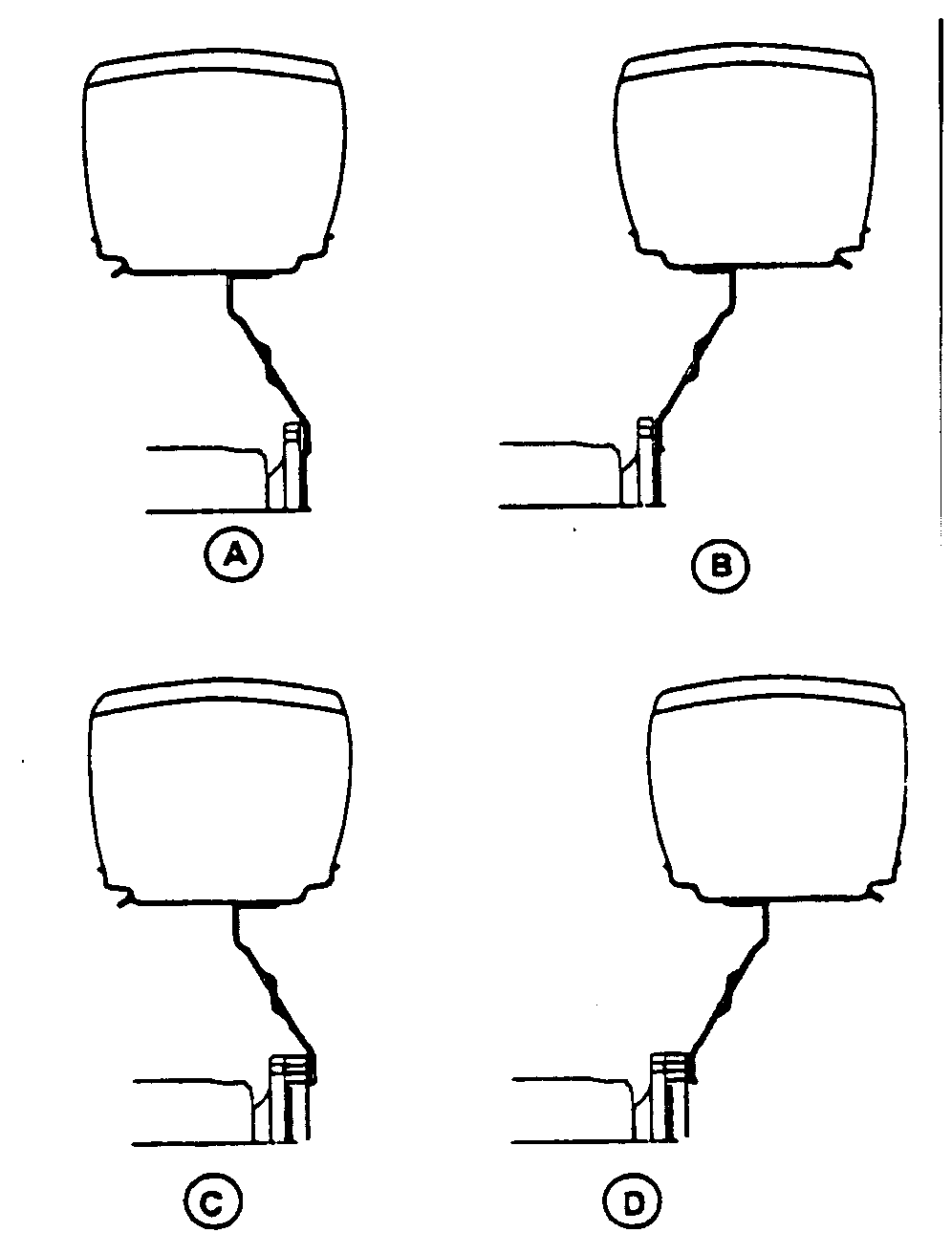

The relationship of the wheels are as shown in the diagrams.

IMPORTANT: After setting wheel spacing, tighten disk-to-flange nuts to 175 N·m (130 lb-ft) and disk-to-hub nuts to 300 N·m (220 lb-ft). Drive tractor 100 m (109 yd) and tighten again.

TREAD WIDTH
Centerline-to-Centerline
1605 mm (63.2 in.)
1733 mm (68.2 in.)
REAR
Diagram 18.4-16 and 21.5L-16.1 Tires
A Interference-Do not use
B 1530 mm (60.2 in.)
C 1605 mm (63.2 in.)a
D 1733 mm (68.2 in.)a
MFWD (55° Steering Angle)
Diagram 9.5-16 Tire 10.5-18 Tire
A 1549 mm (61.0 in.) 1542 mm (60.7 in.)
B 1710 mm (67.3 in.) 1714 mm (67.5 in.)
aRequires 102 mm (4.0 in.) axle spacer. (See your John Deere Dealer.)


M47178

MX,WTIP,EA4 -19-04MAR96-1/1
