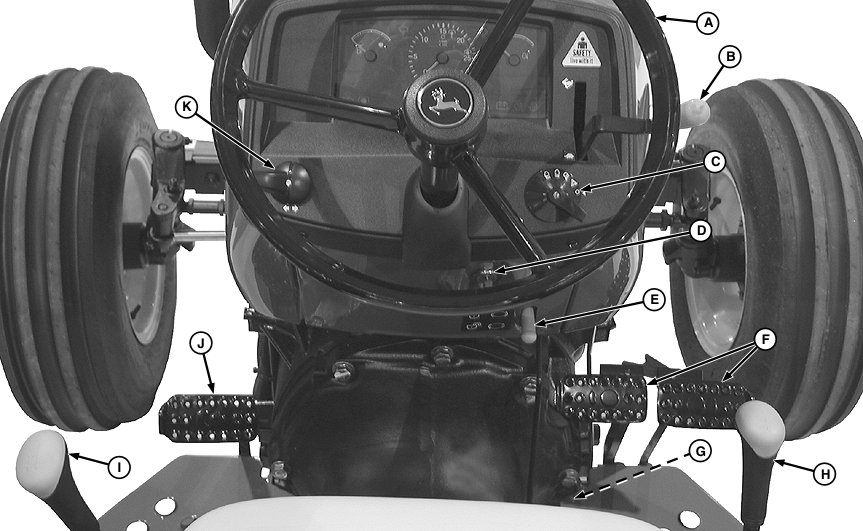

A-Steering Wheel
B-Hand Throttle
C-Light Switch

D-Key Switch
E-Park Brake Lever
F-Brake Pedals

G-Foot Throttle
H-Speed Shift Lever
I-Range Shift Lever

J-Clutch Pedal
K-Turn Signal Switch

AG,OUO1032,2505 -19-12SEP03-1/3

A-PTO Clutch Lever
B-Mechanical Front-Wheel Drive Shift Lever (Optional)

C-Rockshaft Draft Control Lever-If Equipped

D-Rockshaft Position Control Lever

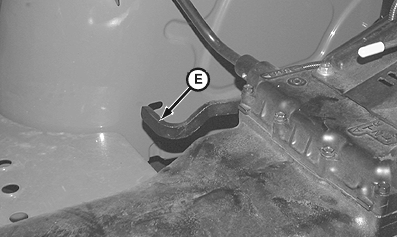

E-Differential Lock Pedal

AG,OUO1032,2505 -19-12SEP03-2/3

NOTE: The rockshaft rate of drop knob (A) is located under seat.

A-Rockshaft Rate of Drop Knob

AG,OUO1032,2505 -19-12SEP03-3/3
