Light Switch Positions

Tractor light switch has five positions:

A-Turns off all lights.

B-Turns on warning lights only. For driving on highway during daytime.

C-Turns on bright headlights and rear flood light, if equipped. For field use only. Do not use on roads. Flood light might blind or confuse other drivers.

D-Turns on bright headlights, tail lights, and warning lights. For highway driving during daytime or nighttime.

E-Turns on dim headlights, tail lights, and warning lights. Turn switch to this position before meeting other vehicles.

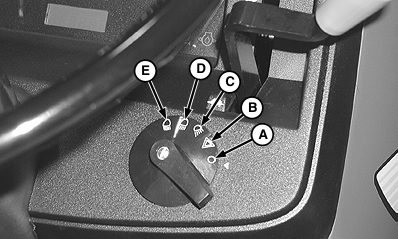

A-Lights Off
B-Warning Lights Position
C-Bright Headlights and Rear Flood Light (If Equipped) Position
D-Bright Headlights, Tail Lights and Warning Lights Position
E-Dim Headlights, Tail Lights and Warning Lights Position

AG,OUO1032,2507 -19-12NOV03-1/1
