Shifting Transmission

IMPORTANT: To prevent transmission damage, do not use speed shift on-the-go. To prevent unnecessary wear, never "ride" the clutch by resting a foot on the pedal.

Depress clutch pedal (A) and stop tractor before shifting either range shift lever to B-range or speed shift lever. Release clutch pedal gradually to take up load smoothly.

It is not necessary to come to a complete stop when shifting from A-range to reverse (R) or from reverse (R) to A-range, they are synchronized.

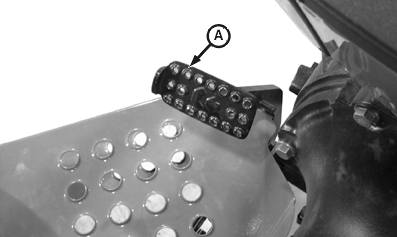

A-Clutch Pedal

AG,OUO1032,2534 -19-21AUG99-1/1
