Using Differential Lock

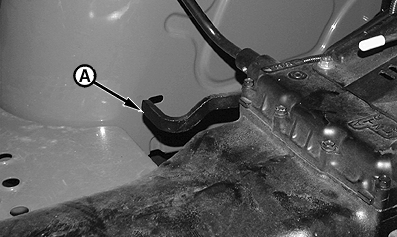

IMPORTANT: To prevent damage to drive train, DO NOT engage differential lock when one wheel is spinning and the other is completely stopped. When one wheel starts to lose traction, engage differential lock by depressing pedal (A) down. Unequal traction will keep the lock engaged. When traction equalizes, lock will disengage itself by spring action. If lock does not disengage, depress one brake pedal and then the other. If tires repeatedly slip, then get traction, then slip again, hold pedal in the engaged position. |
|
CAUTION:
DO NOT operate tractor at high speed or attempt to turn with differential lock engaged.
AG,OUO1032,2537 -19-21AUG99-1/1 |
