Stopping Tractor

causym CAUTION: Always place the range shift lever in neutral (N) and set brakes before dismounting. Leaving transmission in gear with engine off MAY NOT prevent tractor from moving.

1. Depress clutch pedal and place range shift lever (A) in neutral. Release clutch pedal.

2. Apply brakes.

3. Lower all equipment to ground using rockshaft position control lever (D) and rockshaft draft control lever (C), if equipped.

4. Pull hand throttle (B) down to slow idle position. Allow engine to idle for one to two minutes.

IMPORTANT: Cooling of certain engine parts is provided by engine oil. Stopping a hot engine suddenly could cause damage to these parts by overheating or lack of lubrication.

causym CAUTION: Remove the key from key switch to prevent operation by untrained personnel.

5. Turn key switch to OFF position.

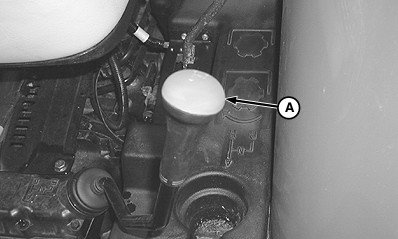

A-Range Shift Lever

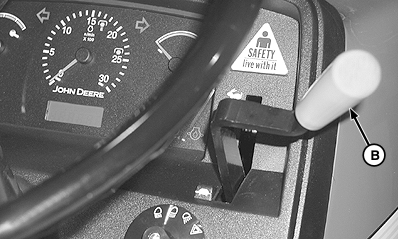

B-Hand Throttle

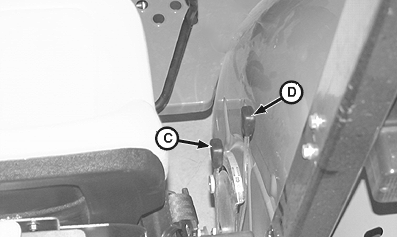

C-Rockshaft Draft Control Lever-If Equipped
D-Rockshaft Position Control Lever

LV8187
LV8188
LV4201

AG,OUO1032,2539 -19-12SEP03-1/1
