Check MFWD Axle Oil Level

1. Park on level ground. Put range shift lever in neutral (N), set brakes and turn engine OFF. Park tractor so that oil fill mark (A) on MFWD hub is level with the ground. Remove filler plug (B). Oil level should be even with bottom of the filler plug hole.

2. Remove plug (C) to check oil level in axle housing. Oil level should be even with bottom of hole.

3. If level is low, add John Deere GL5 Gear Lubricant or its equivalent. (See Fuels, Lubricants and Coolant section.)

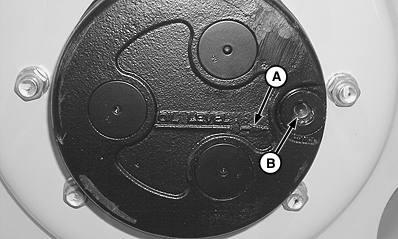

A-MFWD Oil Fill Mark
B-MFWD Oil Fill Plug

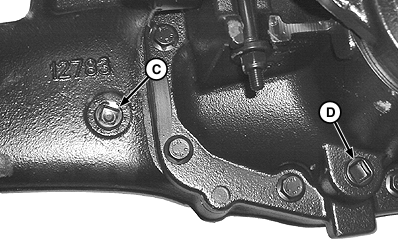

C-MFWD Oil Level Plug
D-MFWD Oil Drain Plug
