Keep ROPS Installed Properly

causym CAUTION: Make certain all parts are installed correctly if roll-over protective structure (ROPS) is loosened or removed for any reason. Tighten mounting bolts to proper torque.

The protection offered by ROPS will be impaired if ROPS is subjected to structural damage, as in an overturn incident, or is in anyway altered by welding, bending, drilling, or cutting. A damaged ROPS should be replaced, not reused. Any alteration to the ROPS must be approved by the manufacturer.

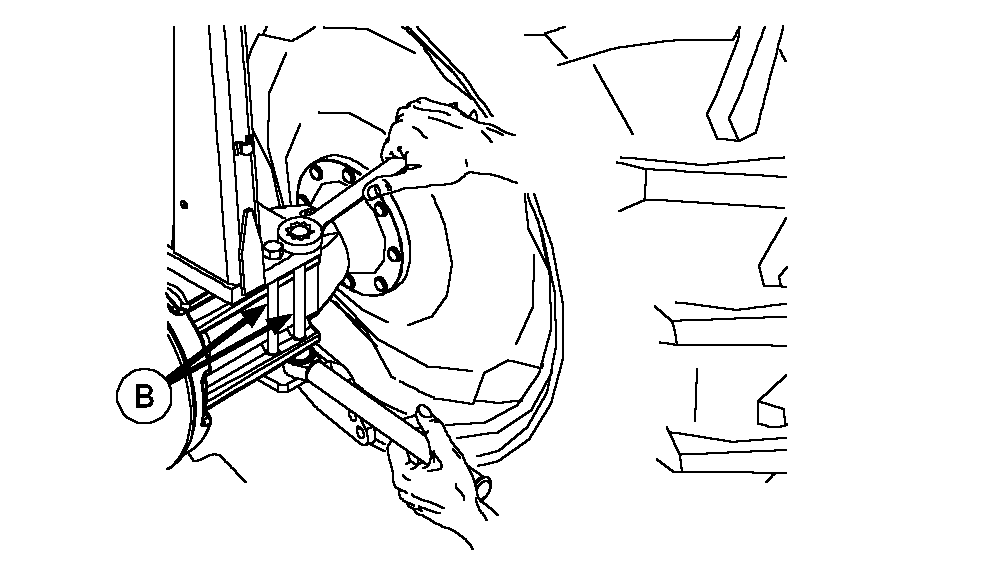

When installation of equipment on a machine necessitates loosening or removing Roll-Over Protective Structure (ROPS) (A), mounting bolts (B) should be tightened to specification.

Specification

ROPS Mounting Bolts -Torque 335 N·m (250 lb-ft)

Inspect ROPS mounting hardware every 250 hours for proper torque or replacement.

If Equipped with Foldable ROPS

TO LOWER ROPS CROSSBAR:

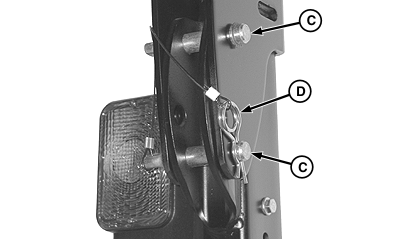

1. Remove quick-lock pins (D) and bottom headed pin (C) on both sides of ROPS.

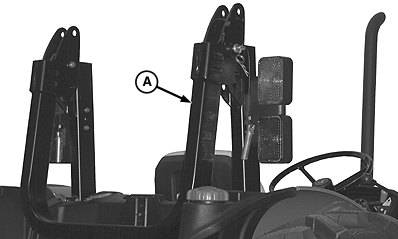

2. Lower crossbar (A) of ROPS onto stops.

3. Reinstall pins (C and D) into bottom holes in ROPS to lock crossbar down.

LV8721
LV4084
LV8735


A-ROPS Crossbar
B-Mounting Bolts (8 used)
C-Headed Pins
D-Quick-Lock Pin

AG,OUO1032,2590 -19-13NOV03-1/2

causym CAUTION: Always keep upper part of ROPS pinned in vertical position (as pictured) when operating tractor. If tractor is operated with ROPS folded (e.g., to enter a low building) drive with extreme caution and DO NOT use seat belt.

Fold the ROPS up again as soon as the tractor is operated under normal conditions.

To put ROPS in Operating Position

1. Remove bottom headed pin (C) and quick-lock pins (D) on both sides of ROPS.

2. Lift crossbar (A) of ROPS to vertical position.

3. Reinstall pins (C and D) into bottom holes in ROPS to lock in position.
