Setting Position Control Lever Stop

NOTE: Position control lever stop is used when operating depth or height needs to be repeated.

1. Operate implement for a few minutes to determine proper depth or height.

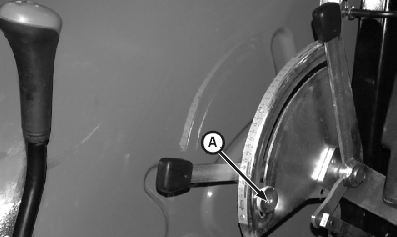

2. Loosen lever stop (A), and slide against position control lever. Lock stop in position by turning in a clockwise direction. Rockshaft will now lower to same position each time control lever is pushed forward to the stop.

A-Lever Stop

AG,OUO1032,2689 -19-30SEP99-1/1
