Adjusting Rockshaft Rate-of-Drop

CAUTION: Excessive rate-of-drop may cause damage or injury. Fully lowering implement should require at least two seconds.

Rockshaft drops faster when a heavy implement is attached. Adjust rate-of-drop knob so that it is slow enough to be safe and prevent implement damage.

Turn rockshaft rate-of-drop knob (A), located under the seat, clockwise to slow rockshaft drop.

Turn knob counterclockwise to increase rate-of-drop.

To lock rockshaft in position, turn clockwise to the stop.

To unlock rockshaft, turn rate-of-drop knob counterclockwise and reset rate of descent per instructions above.

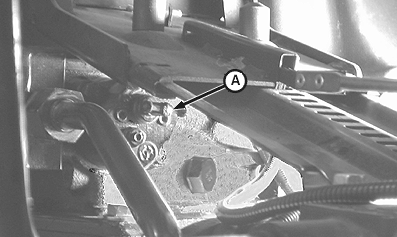

A-Rockshaft Rate-of-Drop Knob
