Converting Category II Hitch to Category I

Tractor center link and draft link ends are sized for Category II implement attaching pins.

If Category I implements are to be used, the Category II hitch can be converted as follows:

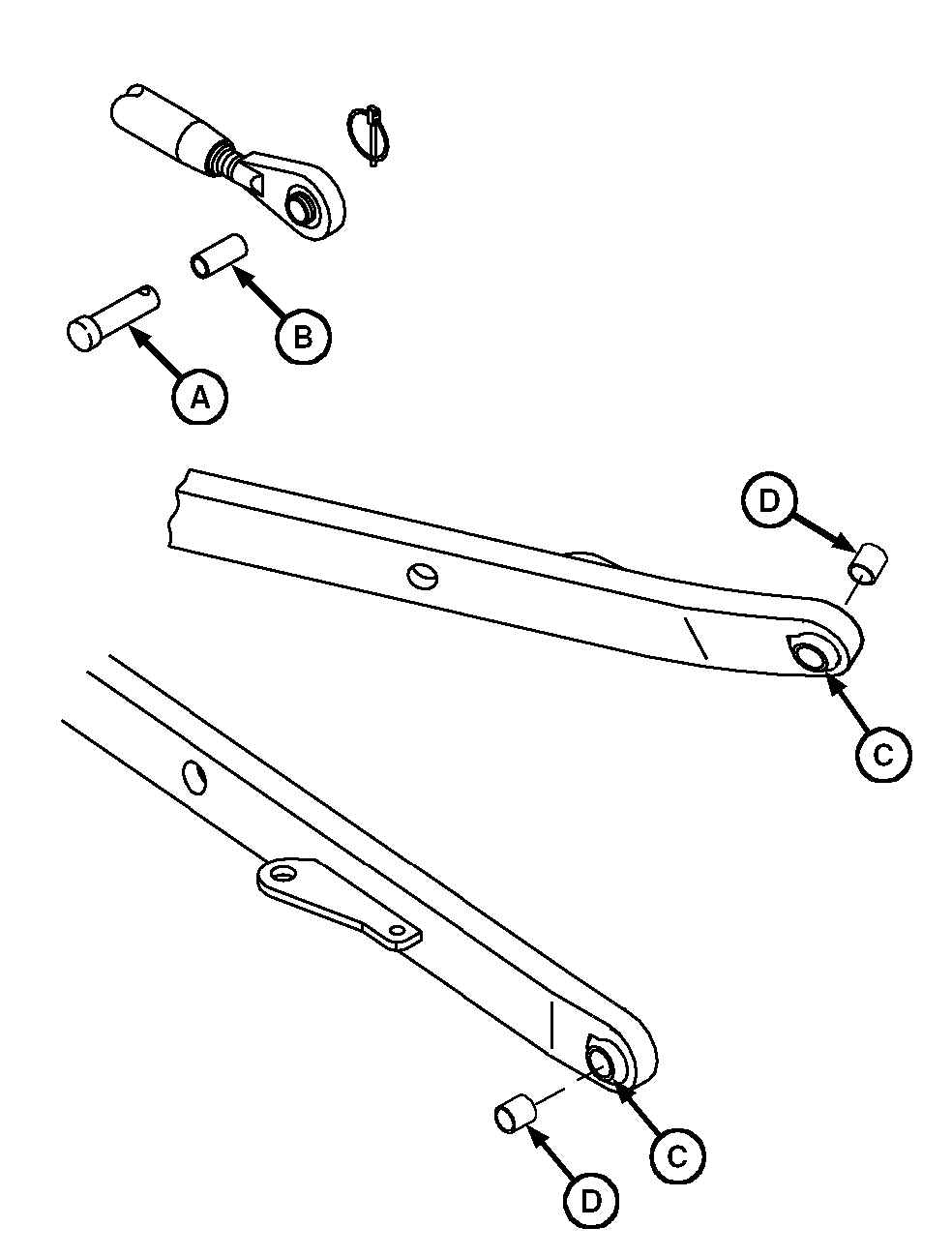

Insert bushing (B) to reduce diameter of center link end. Smaller implement mast pin (A) is also needed when bushing is installed.

Install one bushing (D) on each side to reduce diameter of each draft link end.

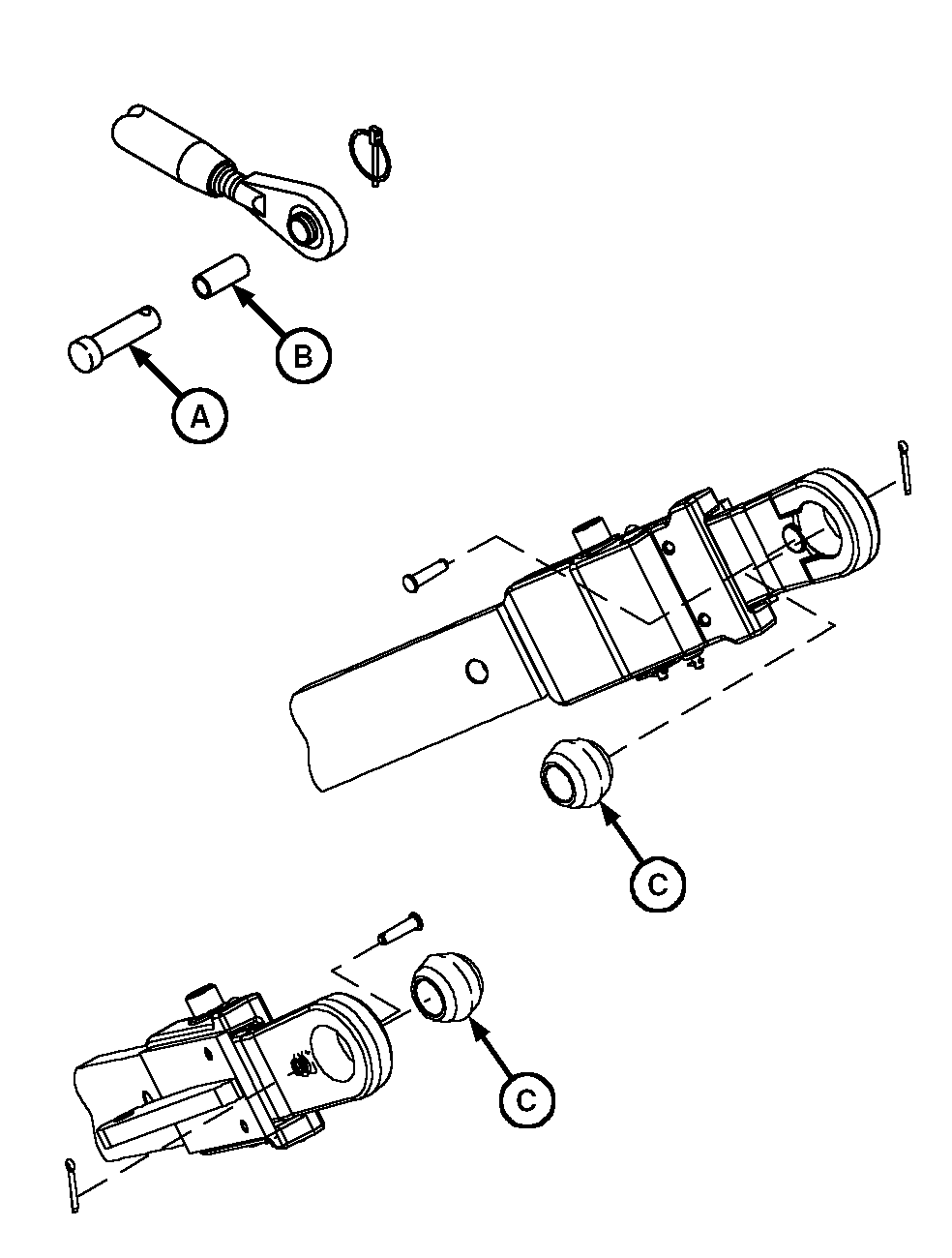

Replace balls (C) in ends of telescopic draft links.

See your John Deere dealer for parts.

A-Mast Pin
B-Center Link Bushing
C-Draft Link Balls
D-Bushing

AG,OUO1032,2692 -19-30SEP99-1/1
