Lubricate Front Axle Pivot Pin(s)

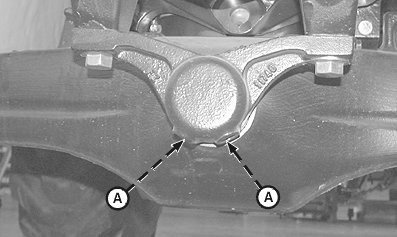

LV4217

Front of MFWD Axle-Early Model Shown

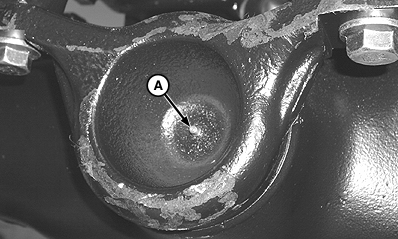

LV8750

Front of MFWD Axle-Late Model Shown

Lubricate MFWD axle front pivot zerk (A) and rear pivot zerk (B) with several shots of multipurpose grease.


A-MFWD Axle Front Pivot Zerk
B-MFWD Axle Rear Pivot Zerk

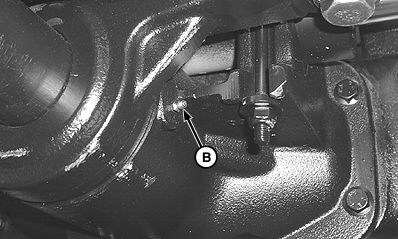

LV8944

Rear of MFWD Axle

AG,OUO1032,2712 -19-17OCT03-1/2

Lubricate adjustable axle front pivot zerk (C) and rear pivot zerk (D) (if equipped) with several shots of multipurpose grease. (See Fuels, Lubricants and Coolant section).


C-Adjustable Axle Front Pivot Zerk
D-Adjustable Axle Rear Pivot Zerk

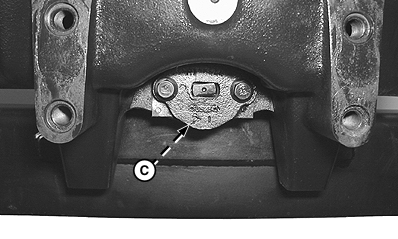

LV8950

Front of Adjustable Front Axle (Axle without Adjustable Steering Cylinder)

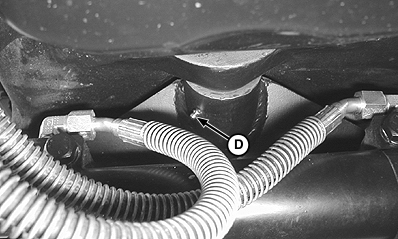

LV8951

Rear of Adjustable Front Axle (Axle without Adjustable Steering Cylinder)

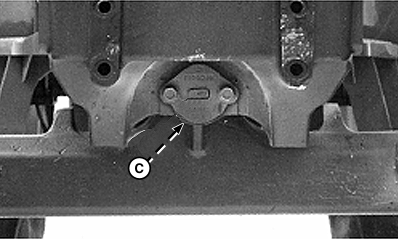

LV8952

Front of Adjustable Front Axle (Axle with Adjustable Steering Cylinder)

AG,OUO1032,2712 -19-17OCT03-2/2
