Lubricate Steering Spindles (Adjustable Front Axle)

On tractors equipped with adjustable front axle, apply several shots of general purpose grease (See Fuels, Lubricants and Coolant section) to steering spindle fitting zerks (A).

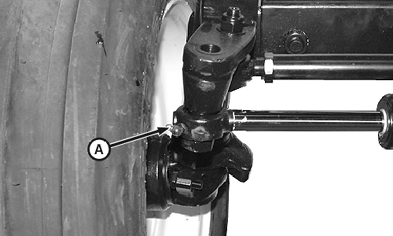

A-Adjustable Front Axle Steering Spindle Zerk

LV4359

Axle with Adjustable Steering Cylinder

LV8953

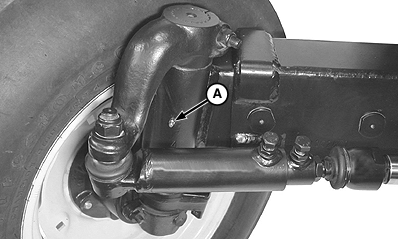

Axle without Adjustable Steering Cylinder

AG,OUO1032,2713 -19-17OCT03-1/1
