Lubricate 3-Point Hitch

Lubricate right lift link (A) and left lift link (B) with several shots of multipurpose grease. (See Fuels, Lubricants and Coolant section.)

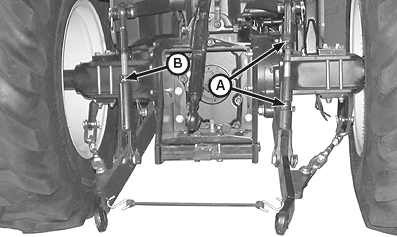

A-Right Lift Link Grease Fittings (2 used)
B-Left Lift Link Grease Fitting

LV4230

AG,OUO1032,2714 -19-30SEP99-1/1
