Check and Adjust Clutch Pedal Free Play

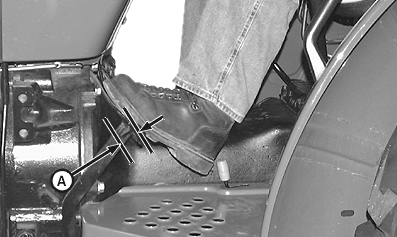

Measure free play (A) at top of pedal stroke. Adjust linkage to obtain 13 ± 3 mm (0.511 ± 0.118 in.) free play.

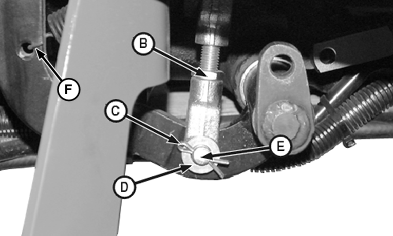

To adjust linkage, loosen lock nut (B), remove cotter pin (C), washer (D), retaining pin (E) and return spring (F). Rotate clevis. After making adjustment, replace clip, pin, washer and return spring and check free play. When free play is correct, tighten lock nut.

A-Clutch Pedal Free Play
B-Lock Nut
C-Cotter Pin
D-Washer
E-Retaining Pin
F-Return Spring

AG,OUO1032,2716 -19-20OCT03-1/1
