Engine Cooling System Components

IMPORTANT: Never pour cold water into the cooling system of a hot engine, as it might crack cylinder block or head. DO NOT operate engine without coolant for even a few minutes.

Make-up coolant is added to the radiator. (See Service-10 Hours section.)

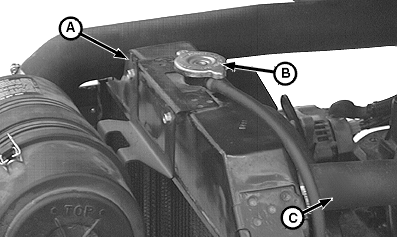

A-Radiator
B-Radiator Cap
C-Upper Radiator Hose

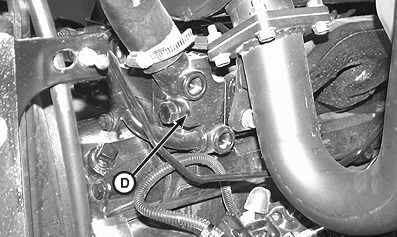

D-Thermostat Housing

AG,OUO1032,2721 -19-30SEP99-1/1
