Replace Tail Light and Warning Light Bulbs

1. Remove screws (A or B).

2. Remove lens.

3. Push and twist to release bulb from socket.

4. Reverse this procedure to reassemble light.

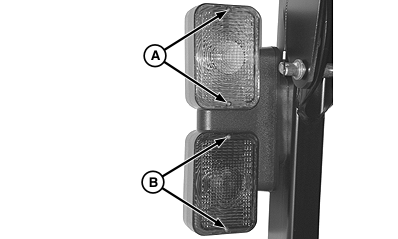

A-Warning Light Cap Screws (2 used)
B-Tail Light Cap Screws (2 used)

LV8720

AG,OUO1032,2726 -19-12SEP03-1/1
