Tighten Bolts-Adjustable Front Axle
Tighten bolts in the following locations to specifications:
Specification
|
Adjustable Front Axle-Axle-to-Knee Bolts (Axle with Adjustable Steering Cylinder)
-Torque
|
480 N·m (350 lb-ft)
|
|
Adjustable Front Axle-Axle-to-Knee Bolts (Axle without Adjustable Steering Cylinder)
-Torque
|
400 N·m (295 lb-ft)
|
|
Adjustable Front Axle-Disk-to-Flange Bolts
-Torque
|
175 N·m (130 lb-ft)
|

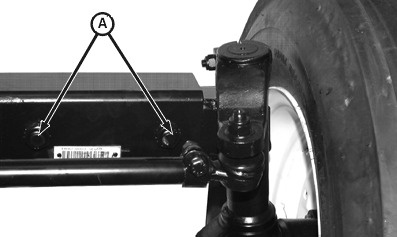

A-Axle-to-Knee
B-Disk-to-Flange
|
Axle with Adjustable Steering Cylinder Shown
|
