OMRE72817: 5105 and 5205 Tractors, Block File: AG_OUO1032_2749_19

Tread Settings-Multi-Position Rear Wheels

Wheel tread on rear axle with multi-position wheels can be adjusted by repositioning or exchanging the rims or by reversing the wheel disks.

Wheel tread can also be adjusted by exchanging the complete wheel to the opposite side of the tractor. (This maneuver permits the change from disk-dished-in to disk-dished-out operations without disassembling the wheel.) When changing rear wheels from one side to the other, the arrow on side wall of tire points in the direction of forward rotation.

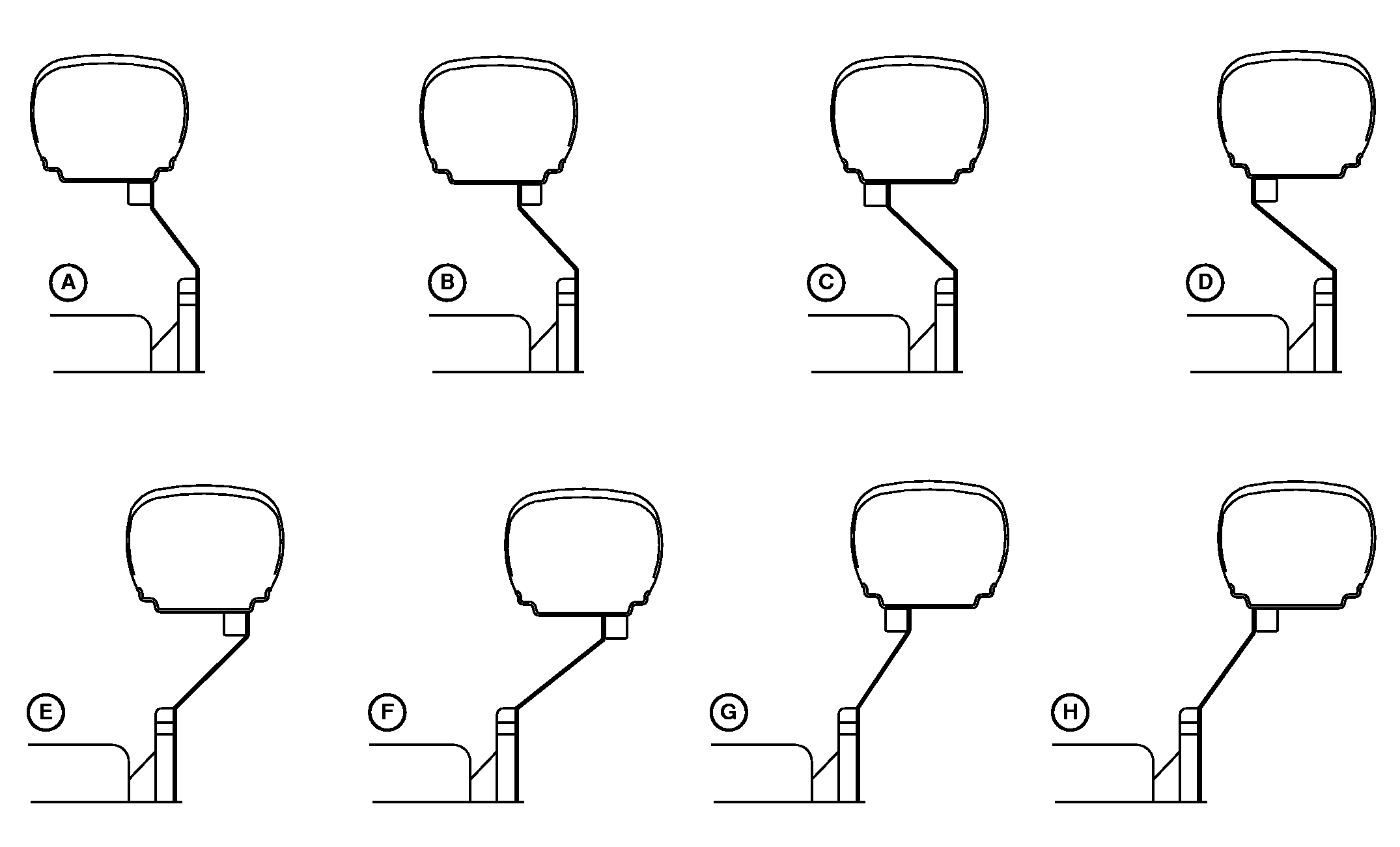

The relationship of the wheel disk and rim in obtaining the different tread settings is shown in the diagrams.

A study of these diagrams, before attempting to change tread settings, will save unnecessary labor.

AG,OUO1032,2749 -19-12SEP03-1/3

AG,OUO1032,2749 -19-12SEP03-2/3

IMPORTANT: After setting wheel spacing, tighten rear wheel rim-to-disk and rear wheel disk-to-hub bolts. Drive tractor 100 m (109 yd) and tighten again.

Specification

Rear Wheel Rim-to-Disk Bolts -Torque	245 N·m (180 lb-ft)
Rear Wheel Disk-to-Hub Bolts -Torque	175 N·m (130 lb-ft)

NOTE: Tread settings are measured at bottom of centerline.

NOTE: 30 mm, 44 mm, and 111 mm spacers are available. Adjust dimensions accordingly if used.

MULTI-POSITION REAR WHEELS TREAD WIDTH Centerline-to-Centerline
	Diagram
Tire	A	B	C	D	E	F	G	H
16.9-24 6PR R3	INT^a	INT^a	INT^a	1417 mm (55.8 in.)	1512 mm (59.5 in.)	1617 mm (63.7 in.)	1715 mm (67.5 in.)	1820 mm (71.7 in.)
16.9-24 6PR R4	INT^a	INT^a	INT^a	1417 mm (55.8 in.)	1512 mm (59.5 in.)	1617 mm (63.7 in.)	1715 mm (67.5 in.)	1820 mm (71.7 in.)
14.9-28 6PR R1	INT^a	INT^a	INT^a	1417 mm (55.8 in.)	1512 mm (59.5 in.)	1620 mm (63.8 in.)	1713 mm (67.4 in.)	1820 mm (71.7 in.)
16.9-28 6PR R1	INT^a	INT^a	INT^a	1426 mm (56.1 in.)	1504 mm (59.2 in.)	1617 mm (63.7 in.)	1708 mm (67.2 in.)	1821 mm (71.7 in.)
^aInterference (Do not use)
