OMRE72817: 5105 and 5205 Tractors, Block File: AG_OUO1032_2759_19

Wheel tread can be adjusted by exchanging the wheels from side to side and by using spacers.

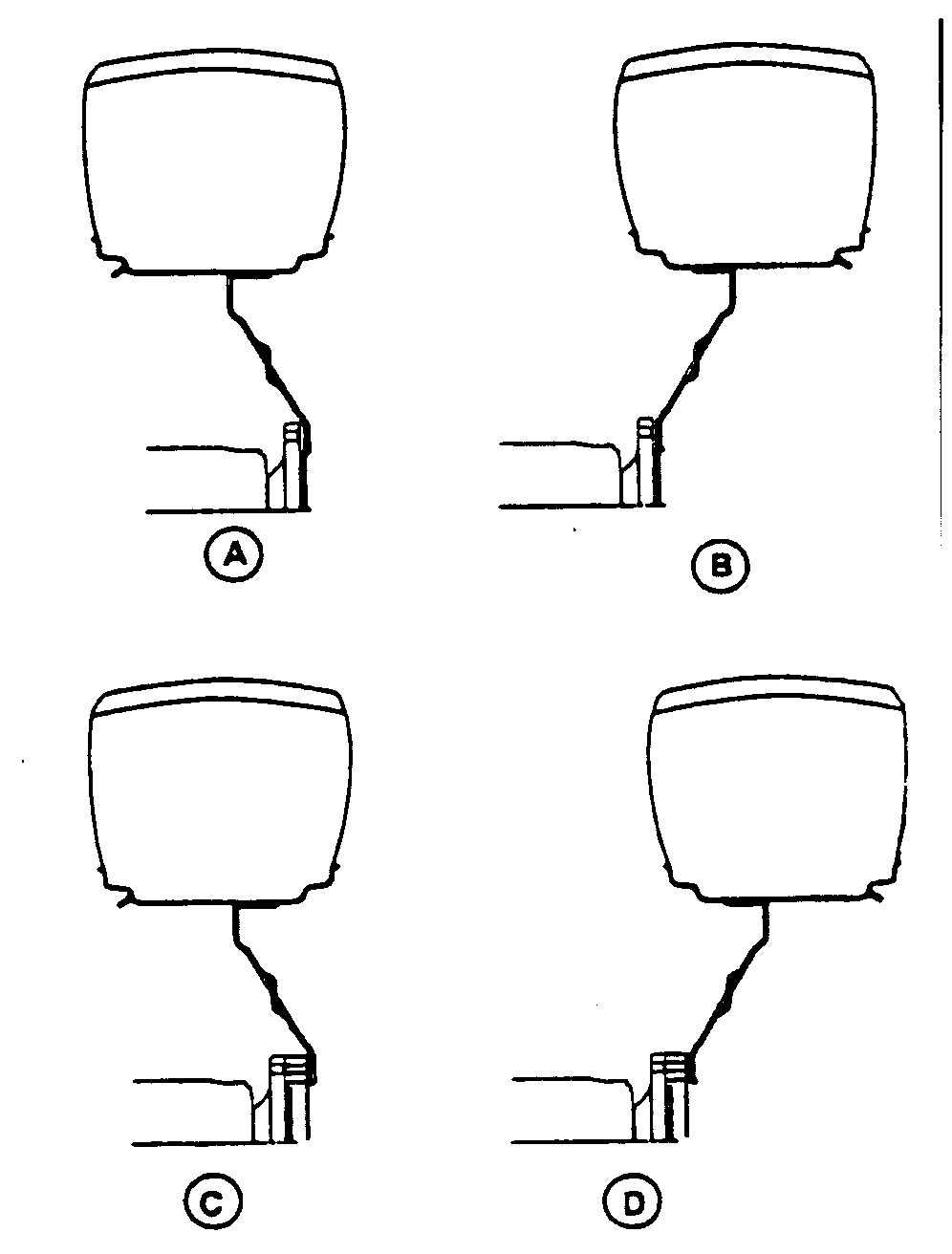

The relationship of the wheels are as shown in the diagrams.

IMPORTANT: After setting wheel spacing, tighten rear wheel disk-to-hub bolts to 175 N·m (130 lb-ft). Drive tractor 100 m (109 yd) and tighten again.

Specification

Rear Wheel Disk-to-Hub Bolts -Torque

175 N·m (130 lb-ft)

TWO-POSITION REAR WHEELS TREAD WIDTH Centerline-to-Centerline
	No Spacer		30 mm Spacer		44 mm Spacer		111 mm Spacer
Tire	A	B	C	D	C	D	C	D
21.5L-16.1 6PR R3	INT^a	1658 mm (65.3 in.)	INT^a	1718 mm (67.6 in.)	INT^a	1746 mm (68.7 in.)	1495 mm (58.9 in.)	1880 mm (74.0 in.)
^aInterference (Do not use)

AG,OUO1032,2759 -19-12SEP03-1/1
