Tread Settings-Multi-Position MFWD Wheels

Wheel tread on MFWD axle with multi-position wheels can be adjusted by repositioning or exchanging the rims or by reversing the wheel disks.

Wheel tread can also be adjusted by exchanging the complete wheel to the opposite side of the tractor. (This maneuver permits the change from disk-dished-in to disk-dished-out operations without disassembling the wheel). When changing MFWD wheels from one side to the other, the arrow on side wall of tire points in the direction of forward rotation. In certain applications, MFWD equipped tractors may operate with the arrows in the opposite direction. See Selecting Front Tire Rolling Direction.

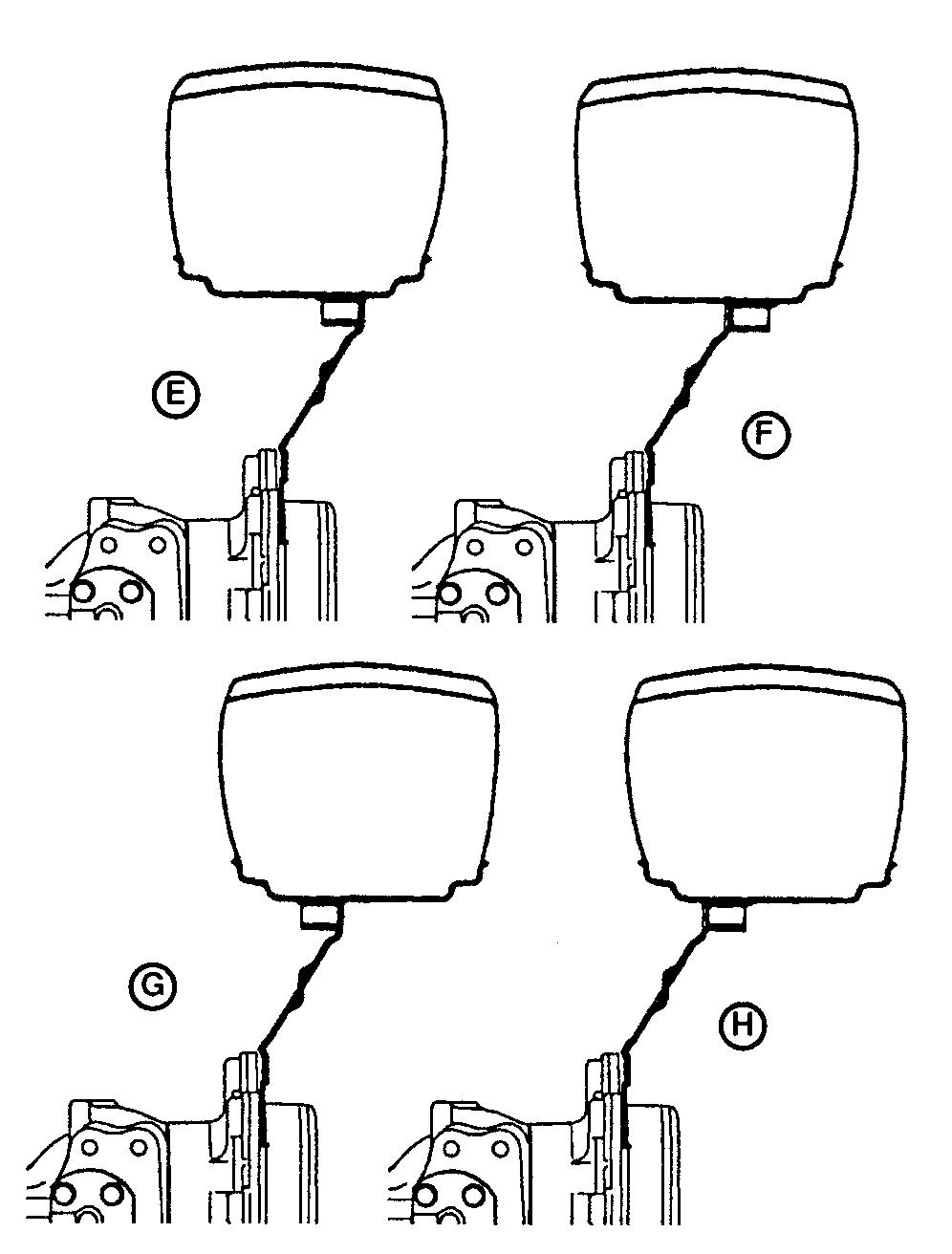

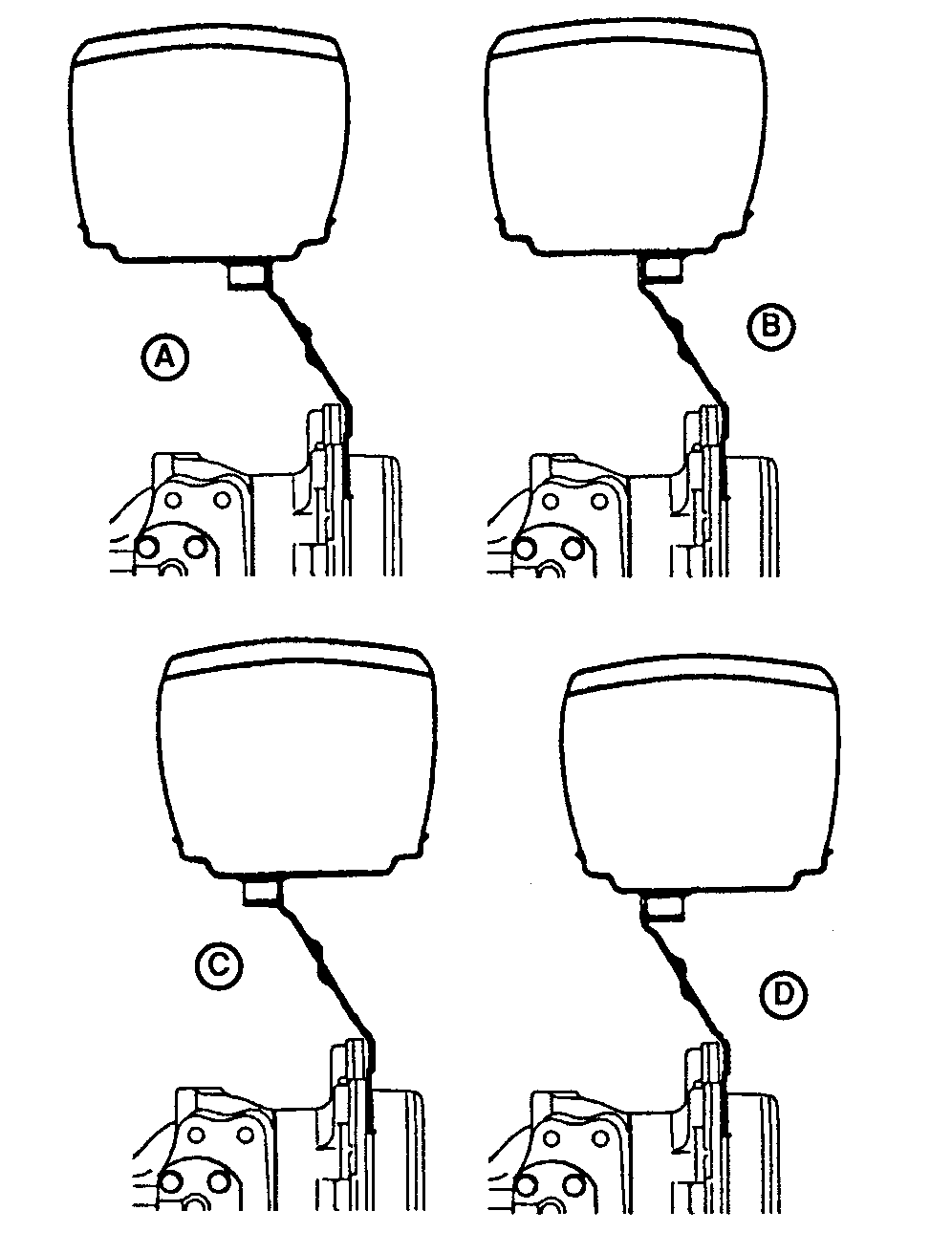

The relationship of the wheel disk and rim in obtaining the different tread settings is shown in the diagrams. A study of these diagrams, before attempting to change tread settings, will save unnecessary labor.

AG,OUO1032,2760 -19-12SEP03-1/3

LV601
LV602

AG,OUO1032,2760 -19-12SEP03-2/3

IMPORTANT: After setting wheel spacing, tighten MFWD wheel rim-to-disk bolts and MFWD wheel disk-to-hub nuts to specification. Drive tractor 100 m (109 yd) and tighten again.

Specification

MFWD Wheel Rim-to-Disk Bolts -Torque 245 N·m (180 lb-ft)
MFWD Wheel Disk-to-Hub Nuts -Torque 300 N·m (220 lb-ft)

NOTE: Tread settings are measured at bottom centerline of tire.

MULTI-POSITION MFWD WHEELS
TREAD WIDTH
Centerline-to-Centerline
  Diagram
Tire A B C D E F G H
12.5/80-18 10PR I3 1538 mm (60.6 in.) 1705 mm (67.1 in.) N/A N/A N/A N/A N/A N/A
9.5-24 6PR R1 1340 mm (52.8 in.) 1452 mm (57.2 in.) 1493 mm (58.8 in.) 1605 mm (63.2 in.) 1640 mm (64.6 in.) 1753 mm (69.0 in.) 1792 mm (70.6 in.) 1905 mm (75.0 in.)
33/14.50-15 4PR 1484 mm (58.4 in.) 1645 mm (64.8 in.) N/A N/A N/A N/A N/A N/A
