Check and Adjust Brake Pedal Free Play

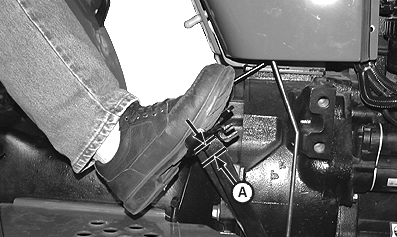

LV4472

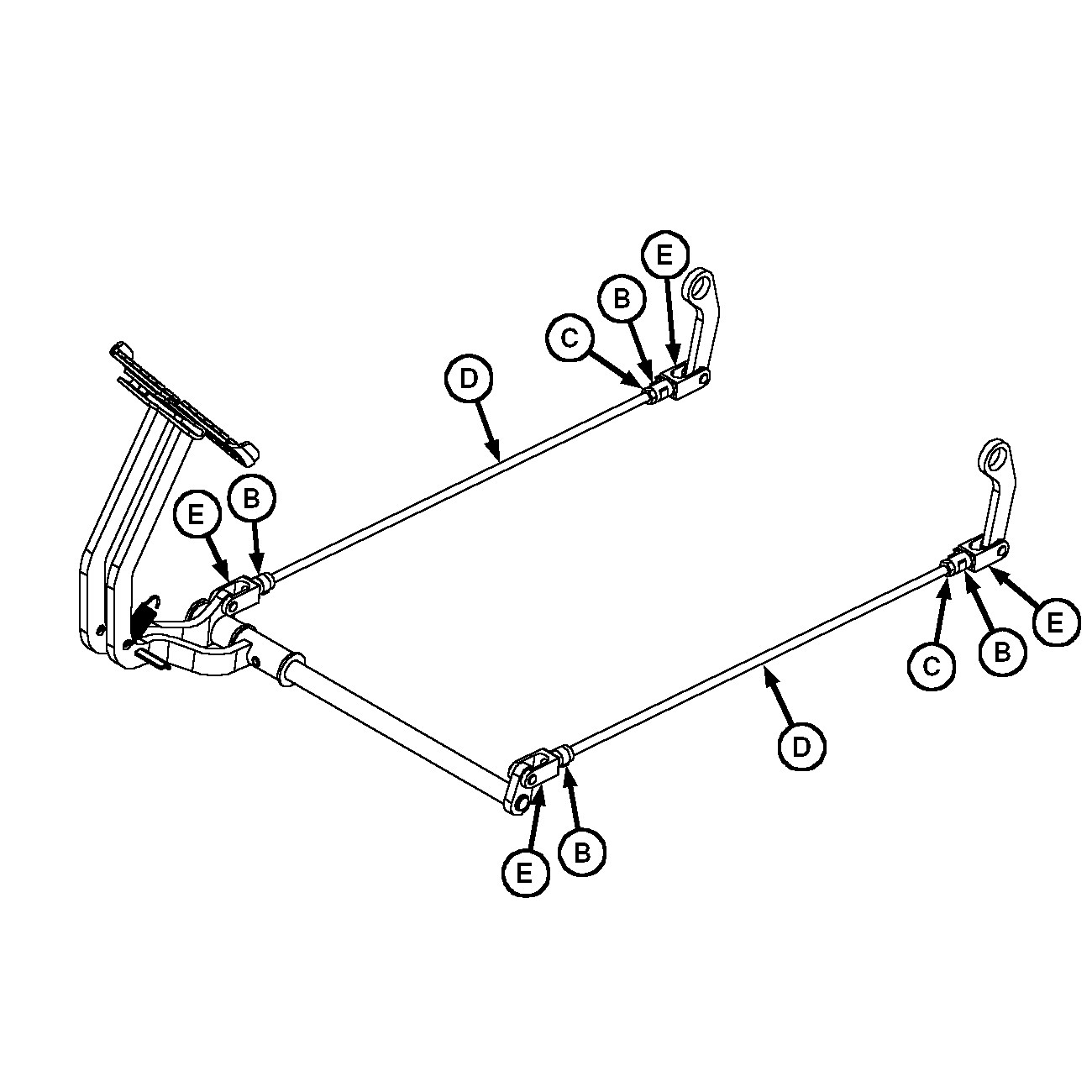

LV4471


A-Brake Pedal Free Play
B-Clip Pin


C-Jam Nut


D-Arm


E-Yoke

1. Park on level surface. Chock wheels to prevent machine movement.

2. Unlock brake pedals.

3. Check free play (A) of each brake pedal at top of stroke.

4. Linkage must be to specification.

Specification

Brake Pedal -Free Play 60-65 mm (2.36-2.56 in.)

5. To adjust linkage, loosen jam nut (C).

AG,OUO1032,2784 -19-01NOV99-1/2

6. Remove clip pin (B) from yoke (E) on either end of linkage.

7. Turn arm (D) until free play is to specification.

8. Tighten jam nut.

9. Install clip pin.

AG,OUO1032,2784 -19-01NOV99-2/2
