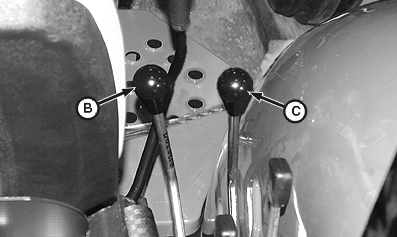

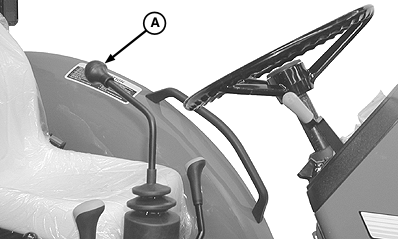

Neutral Lever PositionIf equipped with joystick, spring pressure returns joystick (A) to a centered position (except when lever is fully forward in the "Float" position). When the joystick control lever is in the centered position, the remote cylinder is hydraulically locked in position. If equipped with SCV I lever (B) or SCV II lever (C), spring pressure returns lever (B or C) to a centered position (except when lever is fully forward in the "Float" position). When the control levers are in the centered position, the remote cylinder is hydraulically locked in position.
|
|
