Loader Joystick Functions-If Equipped
The control lever for the SCV I and SCV II has four directions of movement to enable simultaneous control of two functions.
Forward and back direction (A) has the following positions:
-
Pulled fully rearward-Extend position
SCV I is normally connected to the loader boom cylinder and raises when the lever is pulled rearward.
-
Spring centered-Off and locked position
SCVs are locked to hold the boom and bucket in position.
-
Pushed slightly forward-Retract position
Boom cylinder is lowered, valve can be metered to control rate of lowering.
-
Pushed fully forward-Float position
SCV connects both cylinder ports to the return circuit. Loader boom can move freely to follow ground contour. Lever must be manually returned to neutral.
Inward and outward direction (B) has the following position:
-
Pushed slightly outward-Extend position
SCV II is normally connected to the bucket cylinder and dumps when the lever is moved to the right.
-
Pushed fully outward-Regenerative position
Provides faster loader bucket dump. Reduces cavitation. Lever returned to neutral by valve spring.
-
Spring centered-OFF position
Bucket is locked in position.
-
Pulled inward-Retract position
Flow to the bucket cylinder can be metered to slowly roll the bucket upward.
TRANSPORT LOCK
Loader control lever has a transport lock (C). Turn counterclockwise to lock the lever, clockwise to unlock.
|

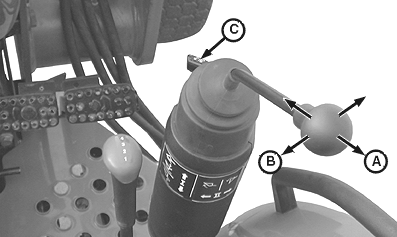

A-Forward and Back Positions (SCV I)
B-Inward and Outward Positions (SCV II)
C-Transport Lock
|
