Adjusting Hitch Side Sway

NOTE: Check implement operator's manual for instruction on whether to allow side sway.

Use the upper hole (C) on the axle bracket when side-to-side movement (sway) is not desired.

The two lower holes (A) and (B) are located below the front draft link pivot so that the sway chains will tighten as the implement is raised and loosened, allowing side-to-side movement, when the implement is lowered. Use holes (A) or (B) for greater side sway for implements requiring side-to-side movement only in the lower position.

IMPORTANT: DO NOT shorten chains so short that they do not allow hitch to be raised completely. If chain prevents hitch from rising, hydraulic relief valve will open, causing excessive oil heating, pump damage or equipment damage.

Implement side sway should be adjusted when the rockshaft is raised for transport by loosening the jam nut on the threaded link (D) and turning the center rod to increase or decrease the length of chain. Tighten jam nut again when adjusted.

NOTE: Use spring or rubber strap to keep draft links out of rear tires when draft links are not attached to implement.

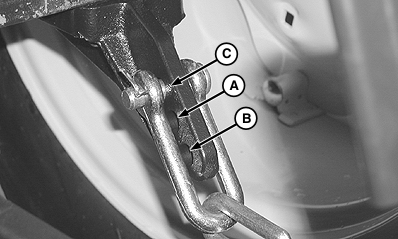

A-Axle Bracket Middle Hole
B-Axle Bracket Lower Hole
C-Axle Bracket Upper Hole
D-Threaded Link
