Adjusting Rockshaft Control Lever Friction

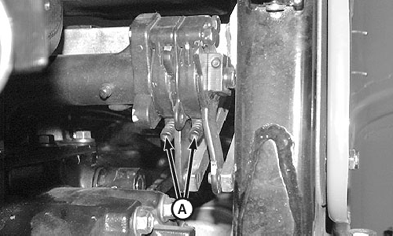

If the rockshaft position control lever or rockshaft draft control lever (if equipped) do not stay in set position, increase lever friction by tightening the set screws (A) for the appropriate lever until the proper friction is obtained.

A-Adjustment Set Screws

MX,PMIP,PA1 -19-24JUL95-1/1
