Observe Rear Wheel Tread Width Limitations

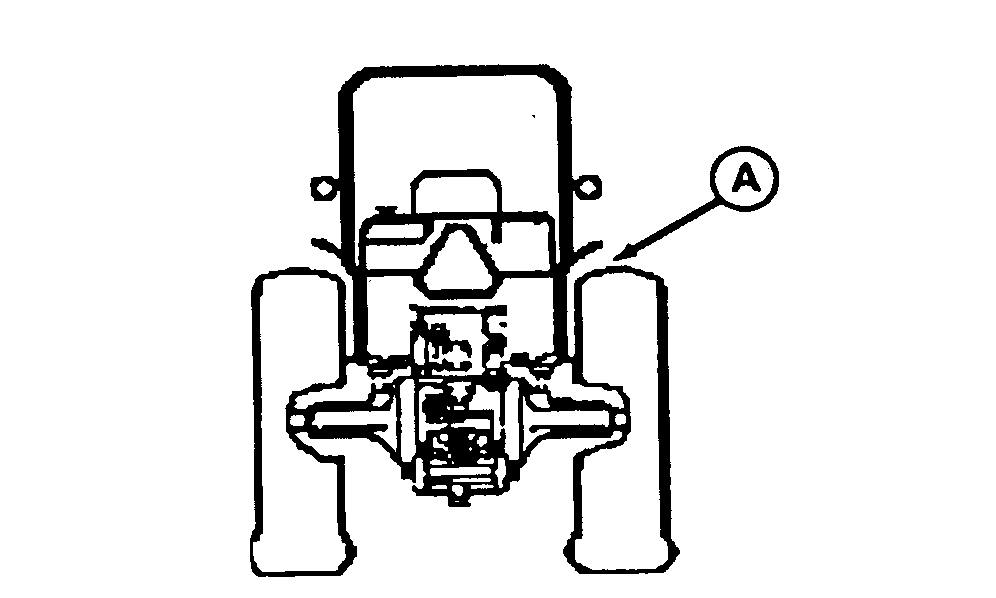

IMPORTANT: Tires must have at least 25 mm (1 in.) clearance with fenders (A) and fuel tank. When large diameter rear tires are installed, check clearance between tire and fenders and fuel tank.

MX,WTIP,DA1 -19-23JUN94-1/1
