Connecting Single-Acting Cylinder

IMPORTANT: A power beyond flow control valve must be used when operating any external hydraulic orbital motor with this tractor. Failure to comply will overheat and possibly damage the tractors hydraulic system.

In order for lever (B) to work properly, a single-acting cylinder should be connected only to SCV I outlet in the extend position (top coupler) (A).

IMPORTANT: Volume of oil required to extend cylinder must not lower transmission-hydraulic oil level below lower sight glass. Check oil level with cylinder fully extended. (See Check Transmission-Hydraulic Oil Level in Service-50 Hours section.)

Push SCV I control lever full forward to use "float" position to lower single-acting cylinder.

"Float" position allows a cylinder to extend and retract freely and uses no engine power.

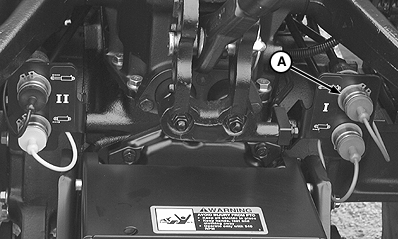

A-SCV I Outlet

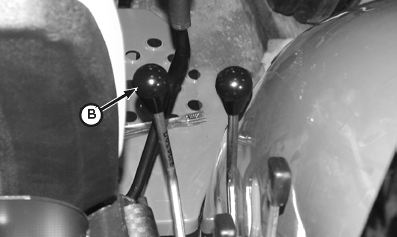

B-SCV I Control Lever
