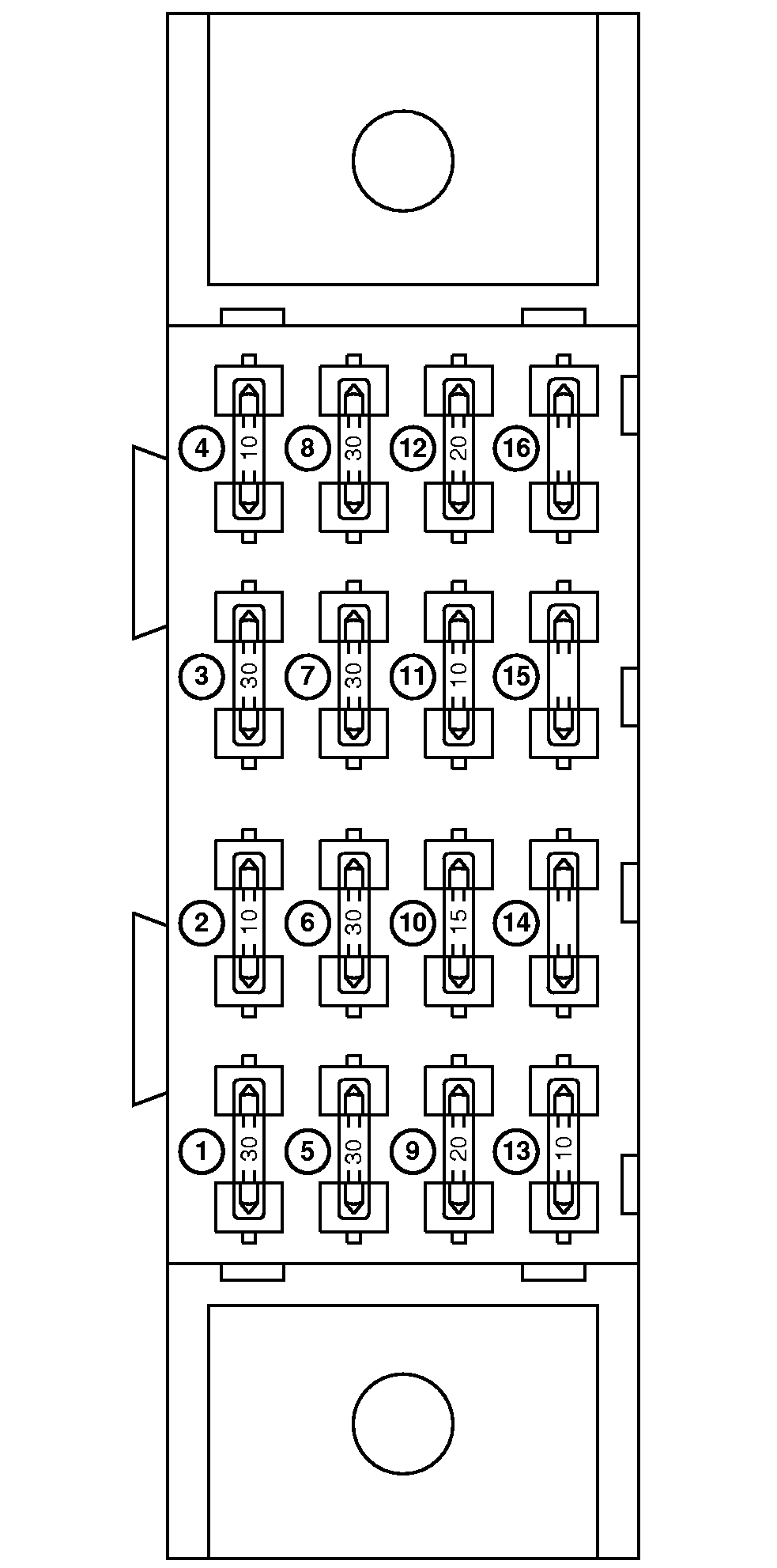

Fuse Size and Function
NOTE:
Serial numbers for this fuse block configuration are as follows.
5105: LV5105C512000 - LV5105C611298
5205: LV5205C522000 - LV5205C621654
All serial nimbers outside this range refer to page 145-19.
F1-30 amp-Key Switch
F2-10 amp-Instrument Cluster Unswitched Power
F3-30 amp-Accessory Relay, Trailer Connector
F4-10 amp-Diagnostic Fuse (socket must be empty during normal operation)
F5-30 amp-Light Switch
F6-30 amp-Left Turn/Warning Light Relay, Right Turn/Warning Light Relay
F7-30 amp-Work Light Relay
F8-30 amp-Auxiliary Power
F9-20 amp-Low Beam Headlights
F10-15 amp-Warning Light Relay, Instrument Cluster
F11-10 amp-Tail Lights, Trailer Connector
F12-20 amp-High Beam Headlights
F13-10 amp-Alternator Excitation, Instrument Cluster, Seat Switch
F14-Not Used
F15-Not Used
F16-Not Used
|
