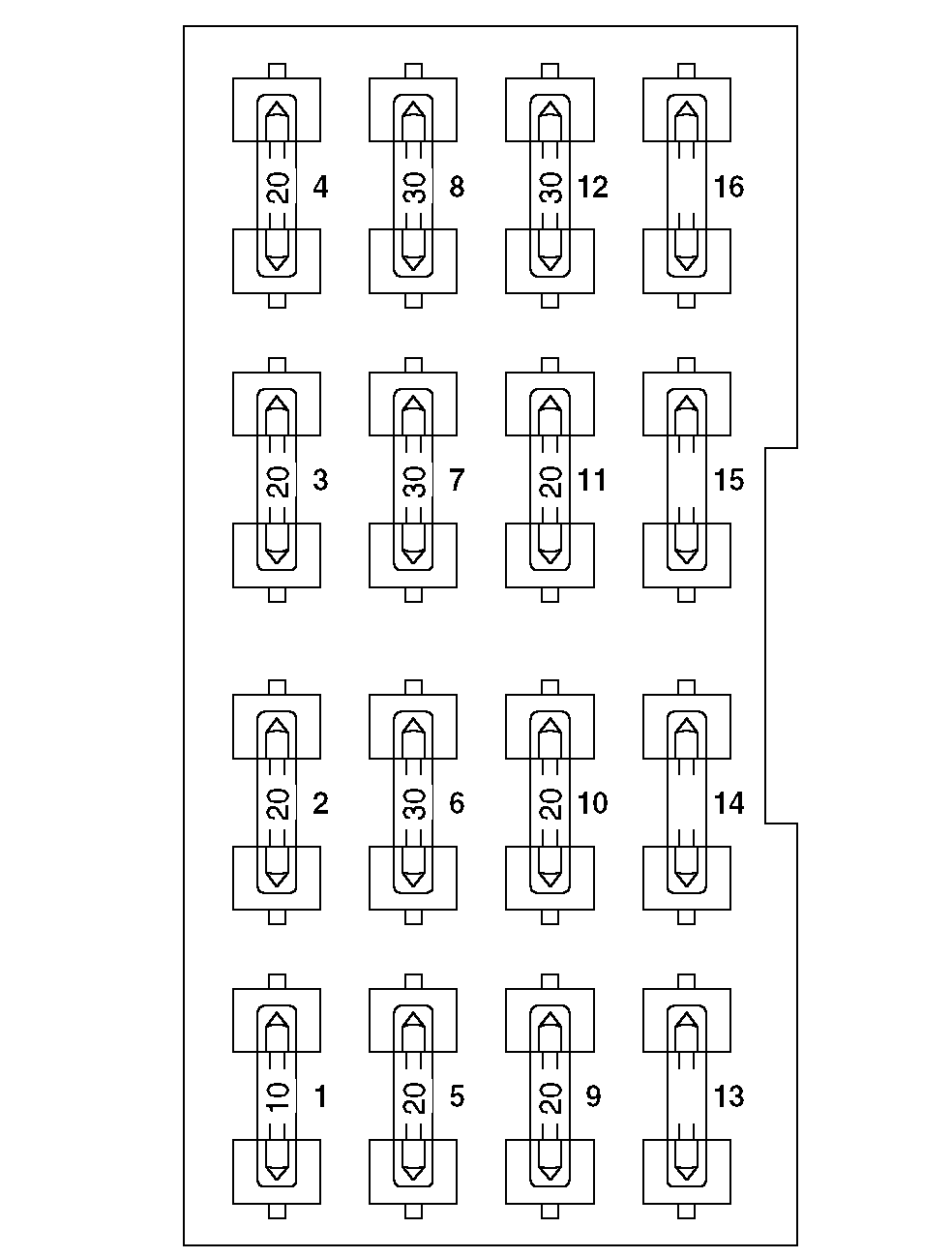

Fuse Size and Function
F1-10 amp-Alternator, Instruments and Engine-Related Warning Indicators
F2-20 amp-Fuel Shut-Off Solenoid
F3-20 amp-Warning Lights and Indicator
F4-20 amp-Flood Light(s)-If Equipped
F5-20 amp-Auxiliary Circuit ("Hot" all the time)
F6-30 amp-Key Switch, Starting Circuit, PTO Warning Circuit, Seat Switch, PTO Switch
F7-30 amp-Horn, Lights, Turn Signals
F8-30 amp-Seven Pin Connector
F9-20 amp-Tail Light(s)
F10-20 amp-High-Beam Headlights and Indicator
F11-20 amp-Low-Beam Headlights
F12-30 amp-Auxiliary Circuit (Key Activated)
F13-Not Used
F14-Not Used
F15-Not Used
F16-Not Used
|
|
