Control Lever and Coupler Identification-If Equipped

SCV levers control oil flow to hydraulic hose couplers at the rear of the tractor.

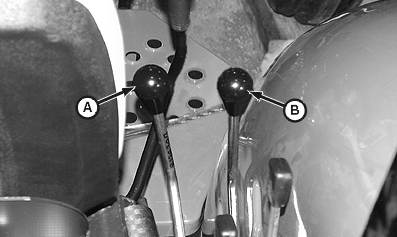

• SCV I lever (A) operates coupler I (C).
• SCV II lever (B) operates coupler II (D).

Both SCV levers detent to a float position when moved fully forward.

A-SCV I Lever
B-SCV II Lever
C-SCV I Coupler
D-SCV II Coupler

OUO1080,0000296 -19-04MAR03-1/2

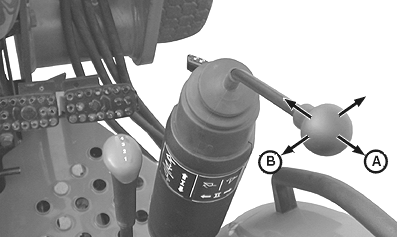

The joystick (if equipped) has two basic directions of movement to control oil flow to the mid-mount couplers, located on the side of the tractor.

• Forward and backward (A) operates coupler I (C).
• Inward and outward (B) operates coupler II (D).

The joystick detents to a float position when moved fully forward.

The joystick detents to regenerative position when moved fully outward.

A-Forward and Backward-Float
B-Inward and Outward-Regenerative

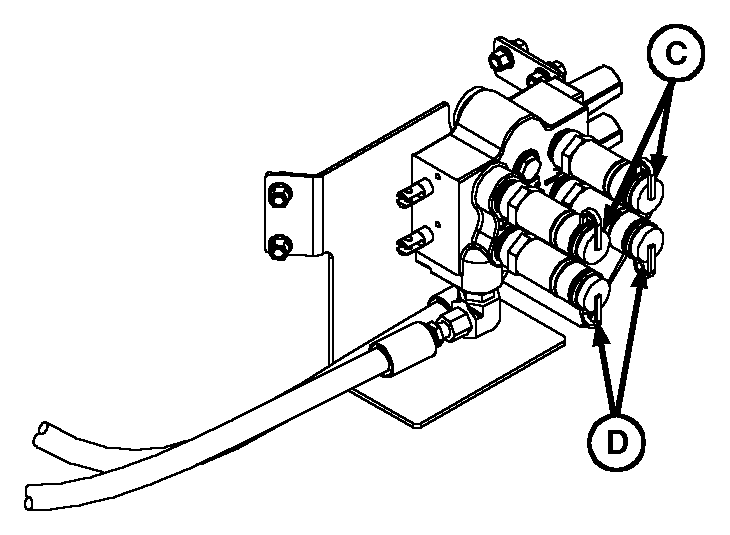

C-Mid-Mount Coupler I-Float
D-Mid-Mount Coupler II-Regenerative
