Using Turn Signals

A-Turn Signal Lever

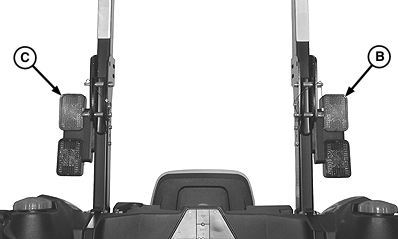

B-Right-Hand Lights
C-Left-Hand Lights

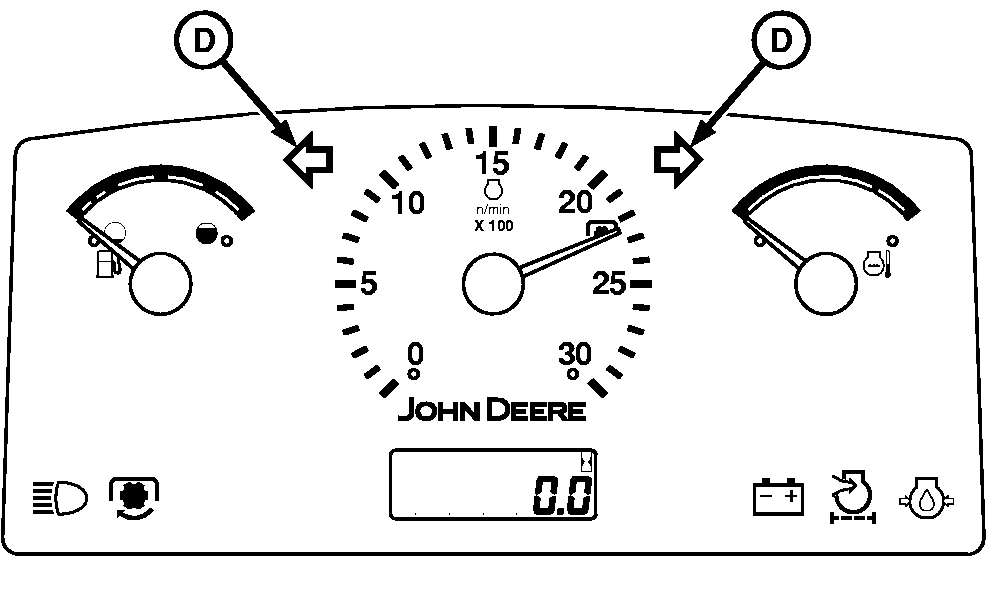

D-Dash Indicator Lights

Move turn signal lever (A) down to indicate left-hand turn or up for right-hand turn. Indicator lights (D) will flash to signal turn direction.

When lever is up, front and rear facing lights on right-hand side (B) will flash while left-hand lights (C) glow steady. Left-hand lights flash and right-hand lights glow steady when lever is down.

NOTE: Be sure to manually return lever to center position after turning.

OUO1080,0000298 -19-12SEP03-1/1
