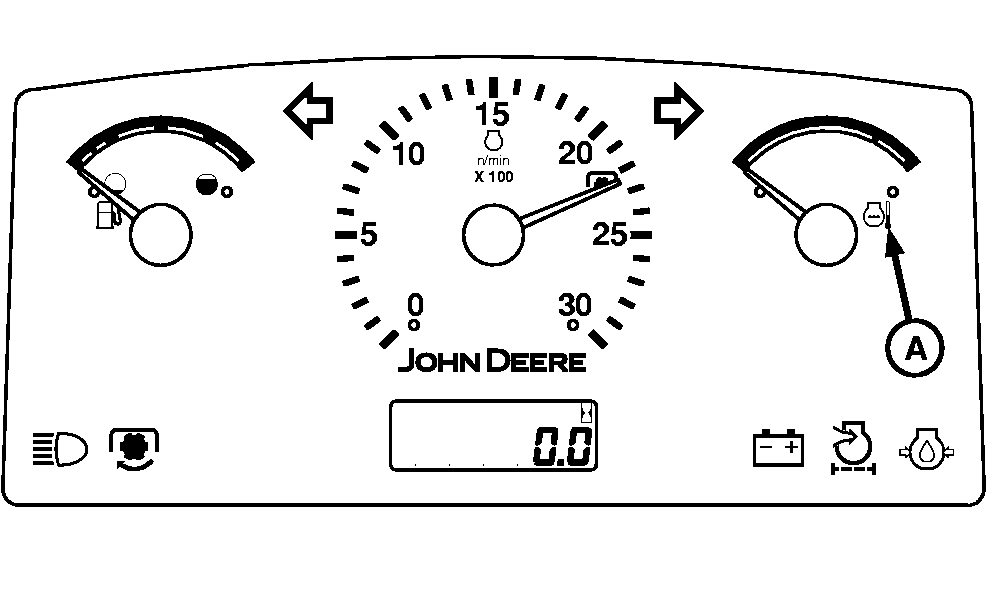

Coolant Temperature GaugeThe needle on the temperature gauge (A) rises as engine warms up. If needle reaches red zone, stop engine and determine the cause.
Check coolant level in radiator when engine cools. Also check grille, radiator and radiator side screens for plugging. Check fan belt tension. If problem is not corrected, see your John Deere dealer. |
|
CAUTION:
DO NOT remove radiator cap or drain coolant until coolant is cold. Always loosen radiator cap slowly to relieve any excess pressure.
OUO1080,000029F -19-04MAR03-1/1 |
