Working With Speed/Hour Meter

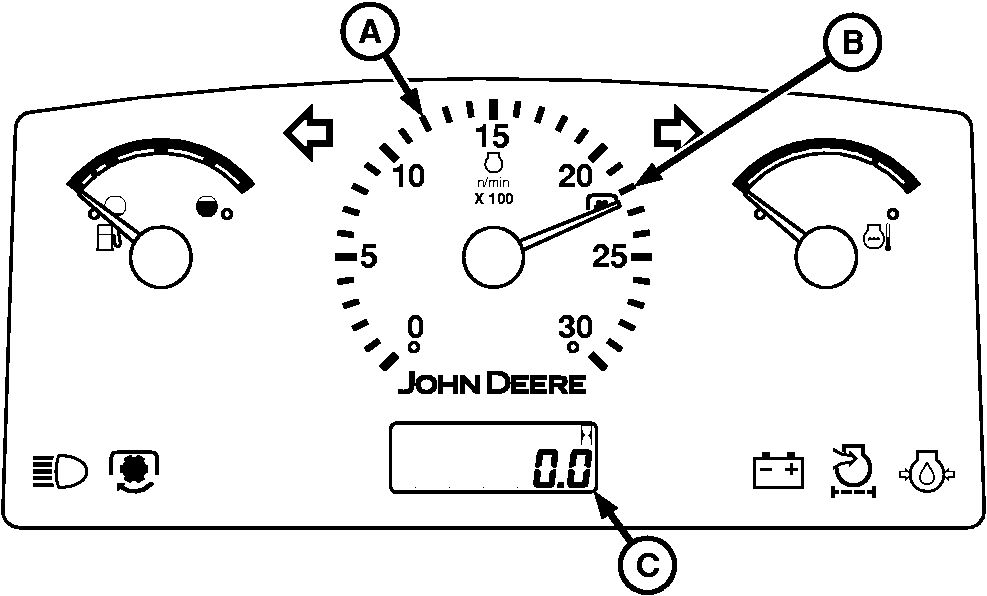

Tachometer (A) shows engine rpm, read in hundreds.

For 540 rpm PTO speed, increase engine speed until tachometer needle is aligned with 2200 rpm mark (B).

Hour meter (C) shows hours of operation in full hours and tenths.

A-Tachometer
B-2200 rpm Mark (540)
C-Hour Meter

OUO1080,00002A4 -19-04MAR03-1/1
