Cold Weather Starting Procedure Using Intake Air Heater System-If Equipped

Tractors may be equipped with an intake air heater system. An electric heating element warms the intake air.

1. Activate the intake air heater system by turning key in key switch (A) to the RUN position. Push and hold key in for 10 or 15 seconds for temperatures above 0°C (32°F). Push and hold key in for 30 seconds when ambient temperature is below -18°C (0°F).

2. Ensure range shift lever is in neutral (N), PTO lever is in disengaged position and park brake is set.

3. Depress clutch pedal and turn key switch clockwise (B) to start engine.

4. If engine runs rough, activate the intake air heater system by holding in on the key switch (A) until engine runs smooth.

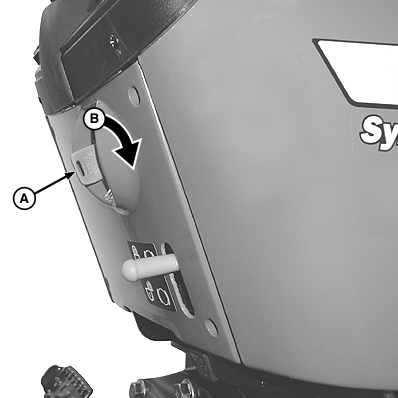

LV8180


A-Key Switch
B-Turning Key Switch in Clockwise Direction

OUO1080,00002A5 -19-04MAR03-1/1
