Operating Tractor PTO

NOTE: Engine will not start if PTO clutch lever is engaged.

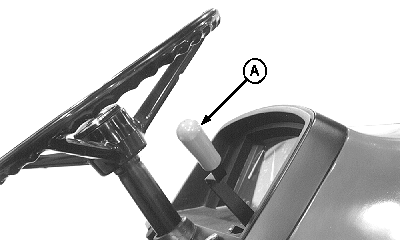

1. Depress clutch pedal, start engine and push hand throttle lever (A) forward until engine speed is sufficient to start PTO implement. Engine speed must be less than 2200 rpm.


A-Hand Throttle Lever

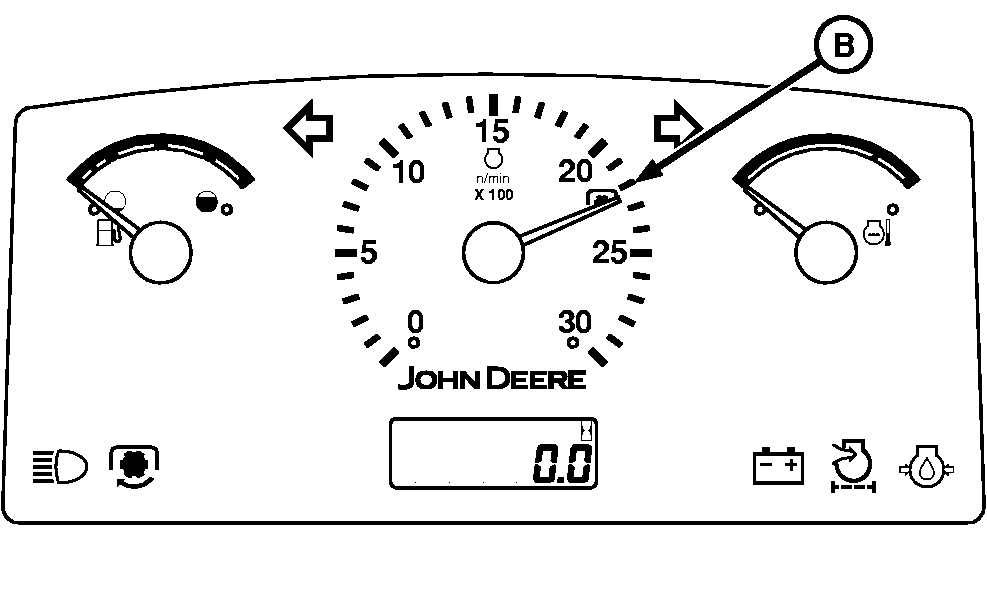

B-540 Operation Speed

LV1719
LV8181

OUO1080,00002A7 -19-04MAR03-1/2

2. Move control lever (A) forward to engage PTO. PTO indicator (B) will light when PTO is engaged.

IMPORTANT: A warning alarm will sound for a few seconds if you leave seat with PTO engaged.

3. Increase engine speed to rated PTO speed of 2200 rpm for 540 operation (C).

causym CAUTION: Turn key OFF to stop engine, set brakes and make sure all mechanisms have stopped before cleaning out machine or making any adjustments to PTO driven implement.

4. Pull control lever back to disengage PTO.


A-PTO Control Lever

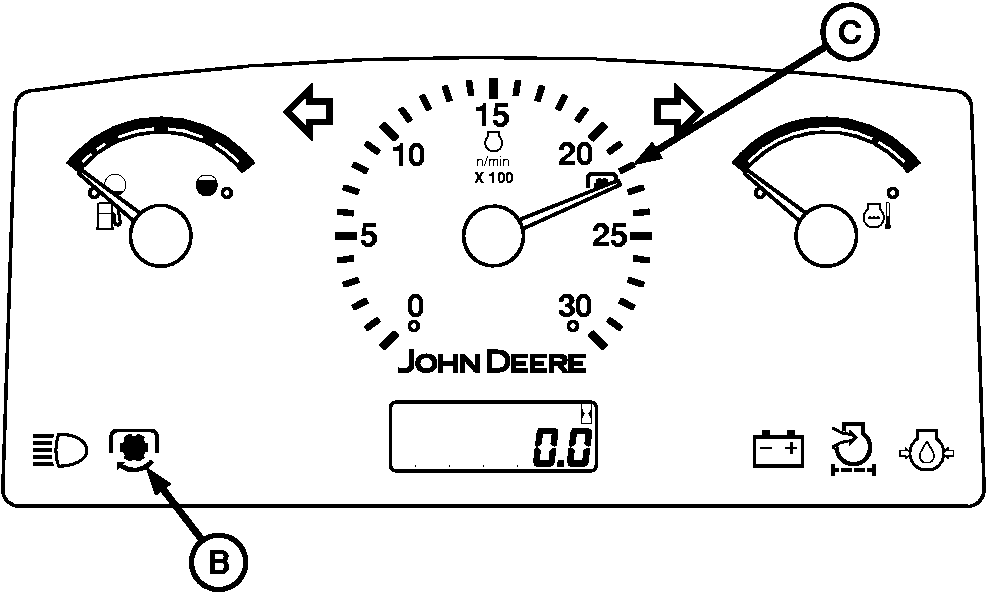

B-PTO Indicator
C-PTO (540) Rated Speed

LV4199

Left Side

LV8728

OUO1080,00002A7 -19-04MAR03-2/2
