Lubricate Swivel Housing (MFWD)

Lubricate swivel housing zerks (A and B) with several shots of multipurpose grease. (See Fuels, Lubricants and Coolant section.)


A-Lower Swivel Housing Zerk
B-Upper Swivel Housing Zerk

LV8955

Lower Swivel Housing Zerk

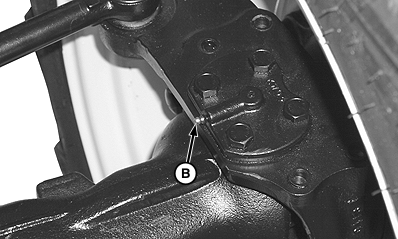

LV8954

Upper Swivel Housing Zerk

OUO1080,00002BB -19-16OCT03-1/1
