Adjusting Toe-In-Two-Wheel Drive Tractor (Axle without Adjustable Steering Cylinder)

1. Loosen tie rod jam nut (C) on left and right tie rods (A).

2. Adjust left and right sides equally by rotating the inner rod (B) to lengthen or shorten tie rod, as needed to obtain toe-in of 3-6 mm (1/8-1/4 in.).

Tie Rod Rotation Approximate Change in Toe-in
1/2 turn 8 mm (5/16 in.)
1 turn 16 mm (5/8 in.)



3. Tighten jam nuts to specification.

Specification

Adjustable Front Axle Tie Rod Jam Nut (Axle without Adjustable Steering Cylinder) -Torque 120 N·m (88 lb-ft)


A-Tie Rod
B-Inner Rod
C-Tie Rod Jam Nut

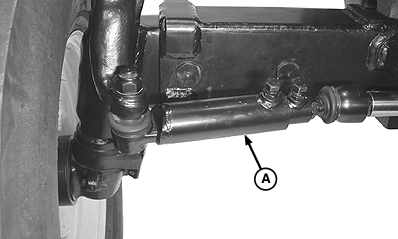

LV8957

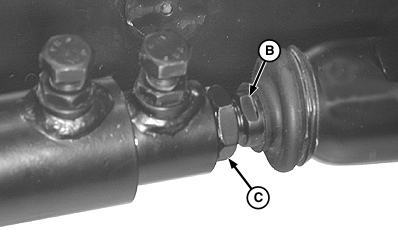

LV8958

OUO1080,00002BC -19-17OCT03-1/1
