Operating Foldable ROPS

causym CAUTION: Make certain all parts are installed correctly if roll-over protective structure (ROPS) is loosened or removed for any reason. Tighten mounting bolts to proper torque.

The protection offered by ROPS will be impaired if ROPS is subjected to structural damage, as in an overturn incident, or is in any way altered by welding, bending, drilling or cutting. A damaged ROPS should be replaced, not reused. Any alteration to the ROPS must be approved by the manufacturer.

Always keep upper part of ROPS pinned in vertical position (as pictured) when operating tractor. If tractor is operated with ROPS lowered (e.g., to enter a low building) drive with extreme caution and DO NOT use seat belt.

Lift the ROPS to the vertical position again as soon as the tractor is operated under normal conditions.

To Lower ROPS Crossbar (A):

1. Remove quick-lock pins (C) and headed pins (B).

2. Lower crossbar (A) of ROPS onto stops.

3. Reinstall pins (B and C) into holes in ROPS to lock crossbar down.

To Put ROPS in Operating Position:

1. Remove quick-lock pins (C) and headed pins (B).

2. Lift crossbar (A) of ROPS to position shown.

3. Install headed pins (B) and quick-lock pins (C).

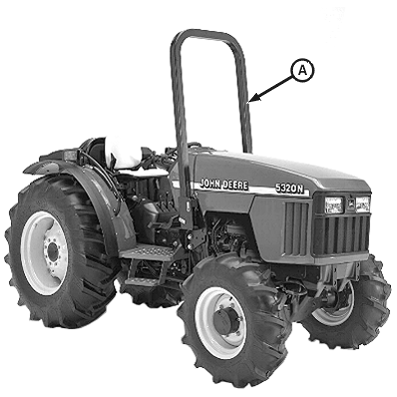

LV4973

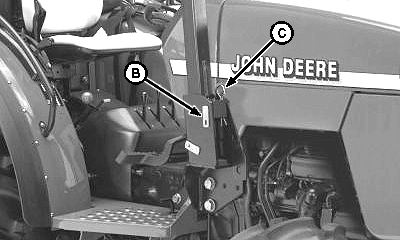

LV1969


A-ROPS Crossbar
B-Headed Pins
C-Quick-Lock Pins
