Stopping The Tractor

causym CAUTION: Always engage the park brake before dismounting. Leaving transmission in gear with engine off MAY NOT prevent tractor from moving.

1. Stop tractor using brakes.

2. Place forward/reverse lever (A) in NEUTRAL.


A-Forward/Reverse Lever

LV8789

AG,OUO1043,183 -19-13NOV03-1/5

3. Place gear shift lever (A) and range shift lever (B) in NEUTRAL.


A-Gear Shift Lever
B-Range Shift Lever

LV721

Open Station

LV4933

Cab

AG,OUO1043,183 -19-13NOV03-2/5

4. Lower equipment to the ground using rockshaft position control lever (A).


A-Rockshaft Position Control Lever

LV814

Open Station

LV4935

Cab

AG,OUO1043,183 -19-13NOV03-3/5

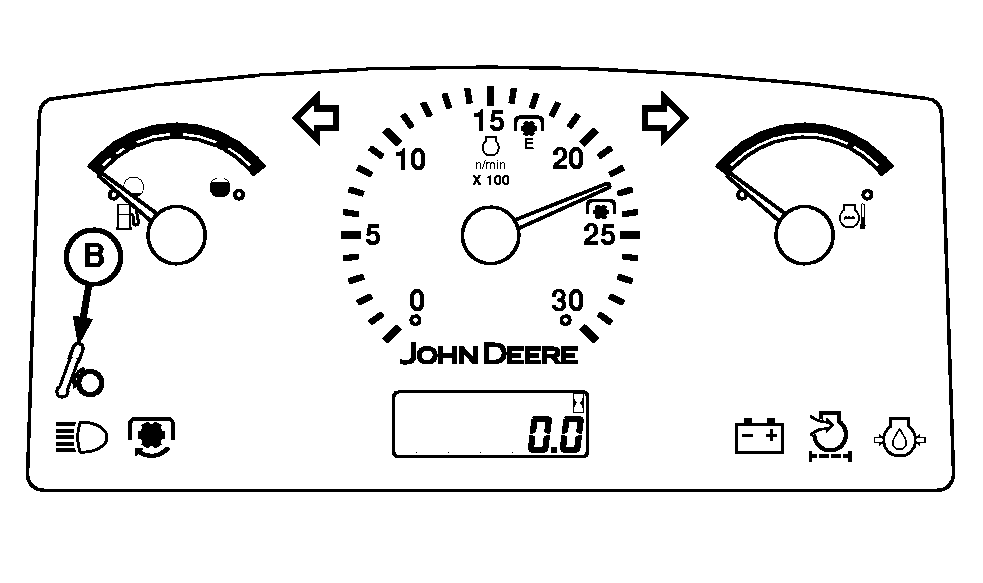

5. Pull park brake lever (A) UP to engage park brake. Park brake lever will lock in raised position and park indicator (B) will light.


A-Park Brake Lever
B-Park Indicator

LV5123
LV9043

Late Model Tractor Shown; Early Model Tractor Similar

AG,OUO1043,183 -19-13NOV03-4/5

IMPORTANT: Cooling of certain engine parts is provided by engine oil. Stopping a hot engine suddenly could cause damage to these parts by overheating or lack of lubrication.

6. Pull hand throttle lever (A) back to the slow idle position. Allow engine to idle for one or two minutes.

causym CAUTION: Remove the key from key switch to prevent operation by untrained personnel.

7. Turn key switch to the OFF position.

LV4936


A-Hand Throttle Lever
B-Key Switch

AG,OUO1043,183 -19-13NOV03-5/5
