Setting Position Control Lever Stop

NOTE: Position control lever stop is used when operating depth or height needs to be repeated.

1. Operate implement for a few minutes to determine proper depth or height.

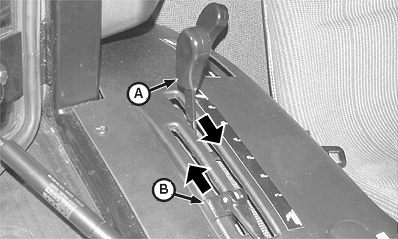

2. Raise lever stop (B), and slide against rockshaft position control lever (A). Lock lever stop in position by pressing lever down. Rockshaft will now lower to same position each time rockshaft position control lever is pushed forward to the stop.

A-Rockshaft Position Control Lever
B-Lever Stop

AG,OUO1043,184 -19-07JUN00-1/1
