Converting Category II Hitch to Category IN or Category I

Tractor center link and draft link ends are sized for Category II implement attaching pins.

If Category IN or Category I implements are to be used, the Category II hitch can be converted as follows:

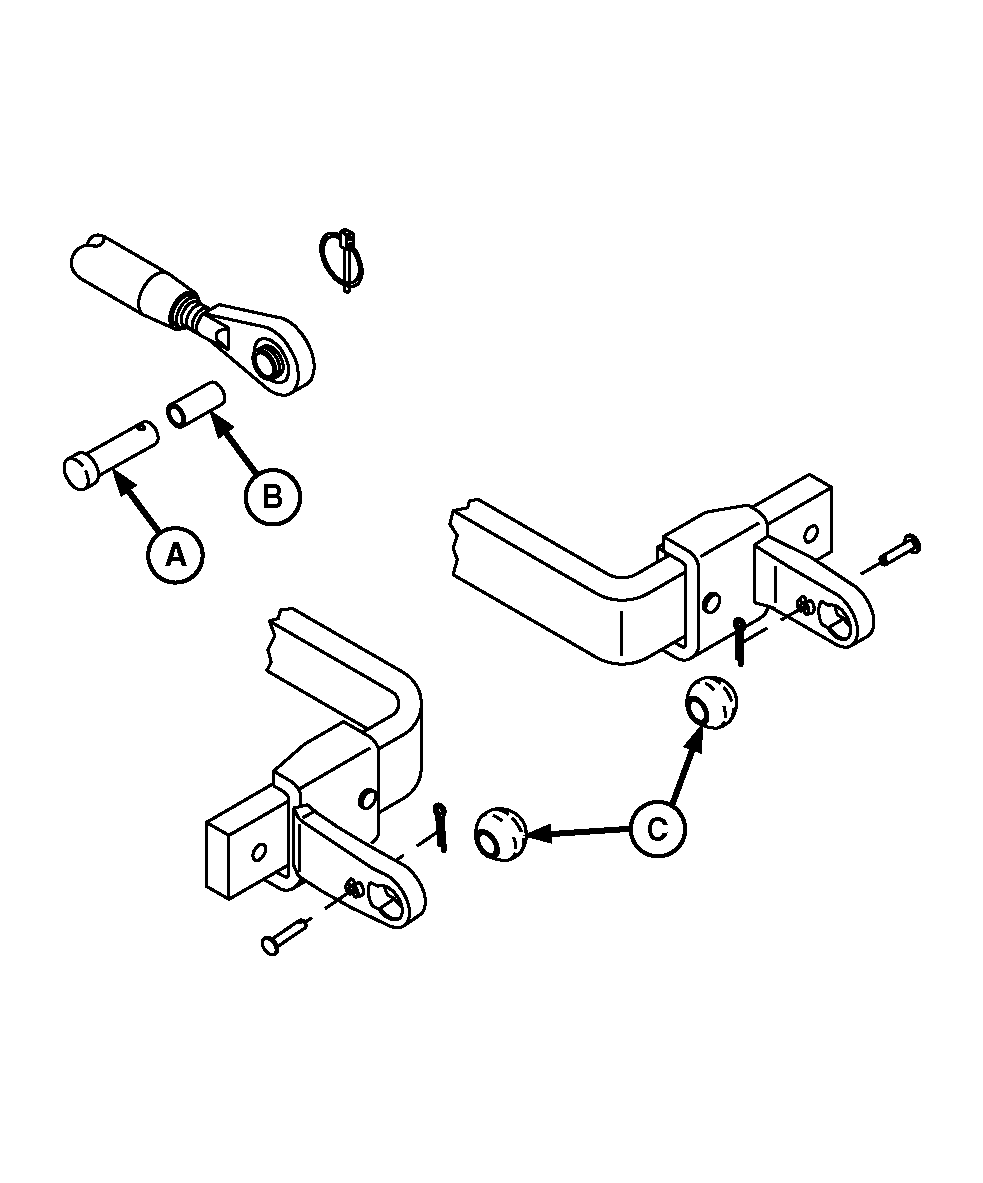

• Insert bushing (B) to reduce diameter of center link end. Smaller implement mast pin (A) is also needed when bushing is installed.
• Replace balls (C) in end of draft links.
• See your John Deere dealer for parts.

A-Mast Pin
B-Center Link Bushing
C-Draft Link Balls

AG,OUO1043,185 -19-07JUN00-1/1
