Attaching Implements to 3-Point Hitch

1. Be sure drawbar will not interfere with implement. If necessary, move drawbar ahead, or remove it. Check for any other potential interference.

causym CAUTION: Prevent unexpected movement of rockshaft by placing draft sensing lever in the forward or OFF position before attaching implement to hitch.

2. Back tractor up to implement (A) so hitch pins (B) align. Place transmission in neutral, engage park brake, and stop the engine BEFORE leaving the tractor seat.

3. Slip draft links over implement hitch pins (B), and retain with quick-lock pins.

NOTE: Locking pins can be stored on draft links when not in use.

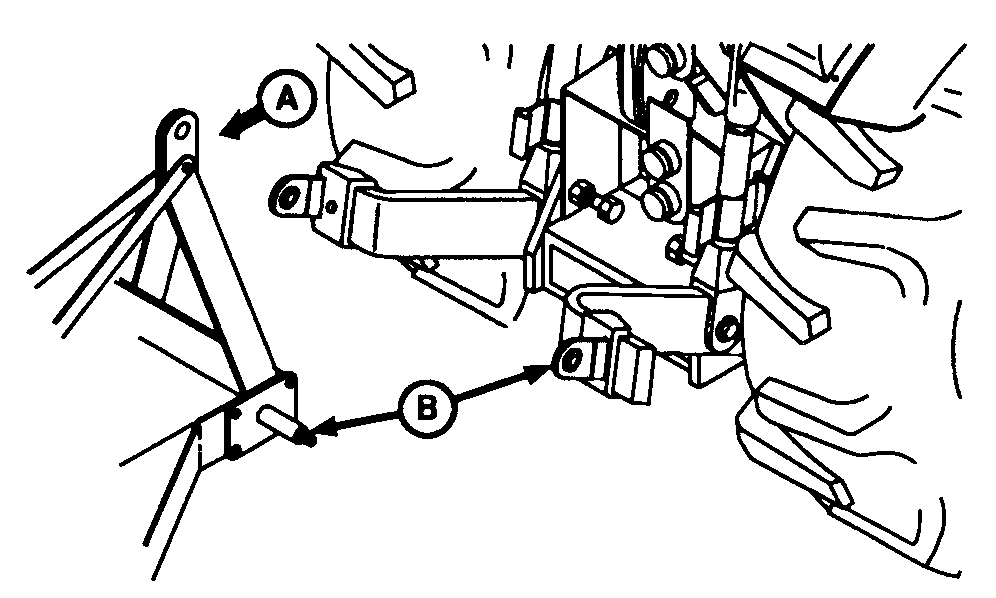

LV734


A-Implement
B-Implement Hitch Pins

AG,OUO1043,191 -19-07JUN00-1/3

4. To remove center link from transport hook, lift locking clip (A), and rotate tab (B) to rear locking clip.

5. Attach center link to implement top mast.

6. Adjust center link and lift links as necessary. (See Leveling the Hitch in this section.)


A-Locking Clip
B-Tab

LV750

AG,OUO1043,191 -19-07JUN00-2/3

causym CAUTION: To avoid bodily injury or machine damage whenever an implement, implement quick coupler, or other attachment is connected to the tractor 3-Point Hitch, check full range of operation for interference, binding or PTO separation.

7. Using position control lever (A), lower and raise implement slowly and check for any point of interference.


A-Position Control Lever

LV723

Open Station

LV4935

Cab

AG,OUO1043,191 -19-07JUN00-3/3
