Leveling the Hitch

1. Lower implement to take weight off hitch.

2. Adjust center link to level implement front-to-rear. Unlatch locking clip (A). Rotate center link body clockwise (B) to lengthen center link or counterclockwise (C) to shorten it. Be sure to latch the locking clip.

IMPORTANT: DO NOT attempt to overextend center link beyond limits of locking clip or lift links past the stops. Link body threads could be damaged.

NOTE: Maximum adjustment range of the center link can only be obtained if the ends are positioned equally within the body when attached to an implement.

M46400


A-Locking Clip
B-Center Link Body Rotation (Clockwise)
C-Center Link Rotation (Counterclockwise)

AG,OUO1043,193 -19-07JUN00-1/2

3. Adjust lift links to level implement side-to-side. Lift crank handle (B) and turn 1/4 turn to engage slot onto roll pin (C) in the center portion of the lift link (A).

Turn crank handle (B) clockwise to raise draft link.

Turn crank handle (B) counterclockwise to lower draft link.

After adjustment, lift, turn, and lower crank handle (B) to engage slot onto the lower body to prevent change of adjustment during operation.

NOTE: Different length lift links are provided depending on rear tire size. Short lift links are used when rear tire static loaded radius is 565 mm (22-1/4 in.) or less. Long lift links are used with tires over 565 mm (22-1/4 in.) static loaded radius.

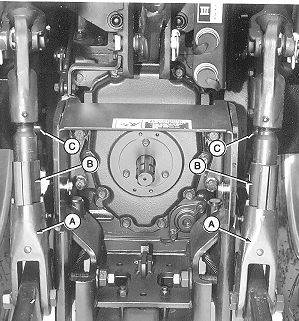

LV753


A-Lift Link
B-Crank Handle
C-Roll Pin

AG,OUO1043,193 -19-07JUN00-2/2
