Warming Hydraulic System Oil

NOTE: Right-hand rear wheel removed for clarity of photo.

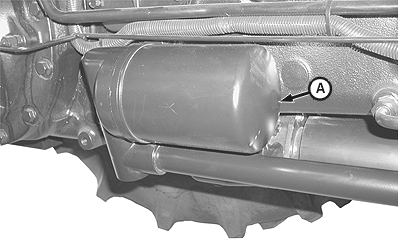

Hydraulic system may be slow to function when tractor is started in cold weather. This is because cold oil will not flow easily through the filter screen or hydraulic system filter (A).

Steering will be slow until system warms up.

Hydraulic system will function normally when oil warms up.

LV4980


A-Hydraulic Oil Filter

AG,OUO1043,194 -19-07JUN00-1/2

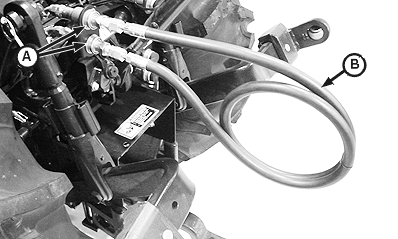

1. Connect hydraulic hose jumper (B) to SCV I couplers (A).

2. Depress clutch pedal, start engine and idle at about 1000 rpm.

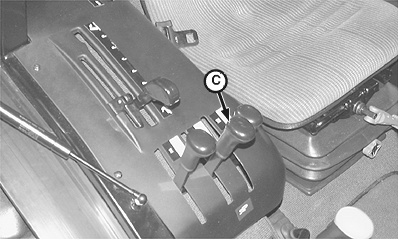

3. Move SCV I lever (C) forward or rearward and hold until hydraulic system oil is sufficiently warmed for ease of steering.


A-SCV I Couplers-Float
B-Hydraulic Hose Jumper
C-SCV I Lever-Float

LV5009
LV5122

Cab Shown

AG,OUO1043,194 -19-07JUN00-2/2
