Adjusting Rockshaft Control Lever Friction-Open Station

If rockshaft position control lever or draft control lever do not stay in set position, increase lever friction.

1. Remove right-hand side rear wheel and fender.

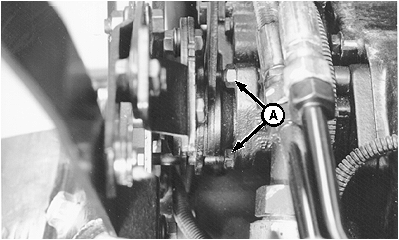

2. Loosen jam nuts (A).

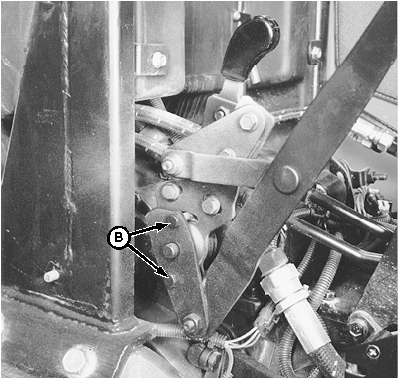

3. Turn adjusting cap screws (B) clockwise to increase friction, counterclockwise to decrease friction. Turn cap screws equal number of turns.

4. Tighten jam nuts (A) after adjustment is complete.

5. Install right-hand fender.

6. Install rear wheel. Tighten cap screws to specification.

Specification

Rear Steel Wheel Disk-to-Hub M16 Bolts -Torque 175 N·m (130 lb-ft)
Rear Cast Wheel Disk-to-Hub M16 Bolts -Torque 225 N·m (166 lb-ft)
Rear Steel Wheel Disk-to-Hub M20 Bolts -Torque 600 N·m (445 lb-ft)


A-Jam Nut (2 used)
B-Adjusting Cap Screw(2 used)

LV1681
LV1682

AG,OUO1043,195 -19-19NOV03-1/1
