SCV Control Lever and Coupler Identification
SCV levers control oil flow to hydraulic hose couplers at the rear of the tractor.
-

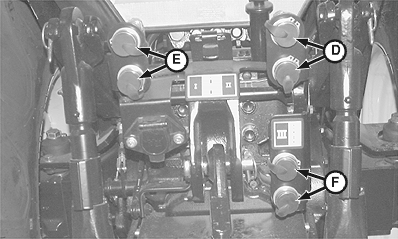

SCV II lever (A) operates upper right-hand coupler (D).
-
SCV I lever (B) operates upper left-hand coupler (E).
-
SCV III lever (C) operates lower right-hand coupler (F) and is optional.
A-SCV II Lever-Regenerative
B-SCV I Lever-Float
C-SCV III Lever (optional)-Float
D-SCV II Coupler-Regenerative
E-SCV I Coupler-Float
F-SCV III Coupler (optional)-Float
|
