Connecting Cylinder Hoses

causym CAUTION: Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high pressure fluids.

If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene may result. Doctors unfamiliar with this type of injury should reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A.

1. Remove dust caps (if equipped) from hose end.

2. Pull dust plug from couplers (A, B, and C).

3. Make sure hose end and coupler receptacles are clean.

4. For double-acting cylinders, check hoses to see which is used for extending. This hose must be connected to the top receptacle of coupler (A, B, or C) in order for cylinder to extend when SCV levers are pushed forward.

For single-acting cylinder, attach hose to top receptacle of coupler (B or C).

X9811

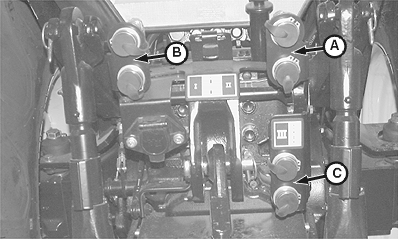

LV4982


A-SCV II Coupler-Regenerative
B-SCV I Coupler-Float
C-SCV III Coupler (Optional)-Float

AG,OUO1043,197 -19-10SEP03-1/4

causym CAUTION: Hydraulic hoses can fail due to physical damage, kinks, age and exposure. Check hoses regularly. Replace damaged hoses.

5. To connect each hose, push hose tip firmly into coupler receptacle. Pull lightly on hose to make sure positive connection was made.

If hoses should accidentally pull from tractor during use, clean hose tip and coupler receptacle. Hoses can be reinstalled as previously described with minimal loss of oil.

LV827

AG,OUO1043,197 -19-10SEP03-2/4

causym CAUTION: If cylinder response is reversed, extending when it should retract, reverse hose connections at coupler.

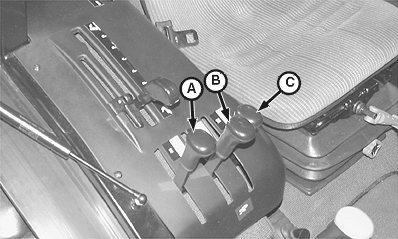

6. Start tractor and operate SCV control levers (A, B, or C) to charge cylinders and confirm hoses are properly connected. Cylinder should extend with lever pushed forward and retract when lever is pulled back.


A-SCV II Lever-Regenerative
B-SCV I Lever-Float
C-SCV III Lever (optional)-Float

LV760

Open Station

LV4976

Cab

AG,OUO1043,197 -19-10SEP03-3/4

IMPORTANT: Volume of oil required to charge cylinders must not lower transmission-hydraulic oil level below end of dipstick. Check oil level with cylinder fully extended.

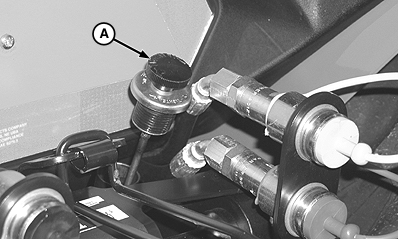

7. Remove dipstick (A) and check oil level. Add transmission-hydraulic oil, if necessary.


A-Transmission-Hydraulic Oil Dipstick

LV8791

AG,OUO1043,197 -19-10SEP03-4/4
