Operating Tractor PTO

NOTE: Engine will not start if PTO clutch lever is engaged.

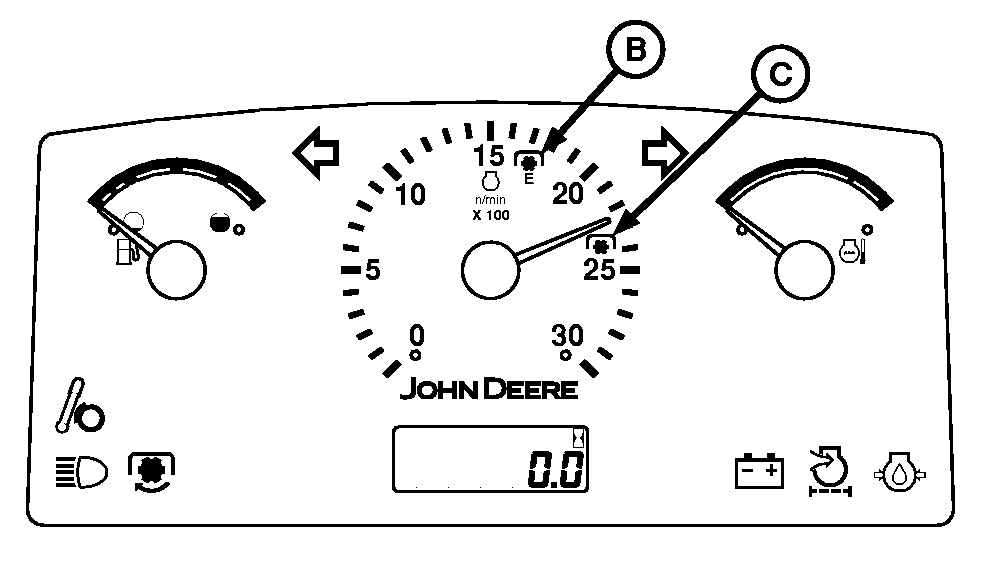

1. Depress clutch pedal, start engine and push hand throttle lever (A) forward until tachometer indicates PTO rated speed of 1700 rpm (B) for 540E operation or 2400 rpm (C) for standard 540 operation.

NOTE: Engine speed is mechanically limited to a maximum of 1900 rpm (no load) or 1700 rpm (load), when in 540E position. 540E operation will not engage if engine speed is above 1900 rpm (no load) or 1700 rpm (load).


A-Hand Throttle Lever
B-540E Operation Speed
C-540 Operation Speed

LV4937
LV8815

Late Model Tractor Shown; Early Model Tractor Similar

AG,OUO1043,205 -19-13NOV03-1/2

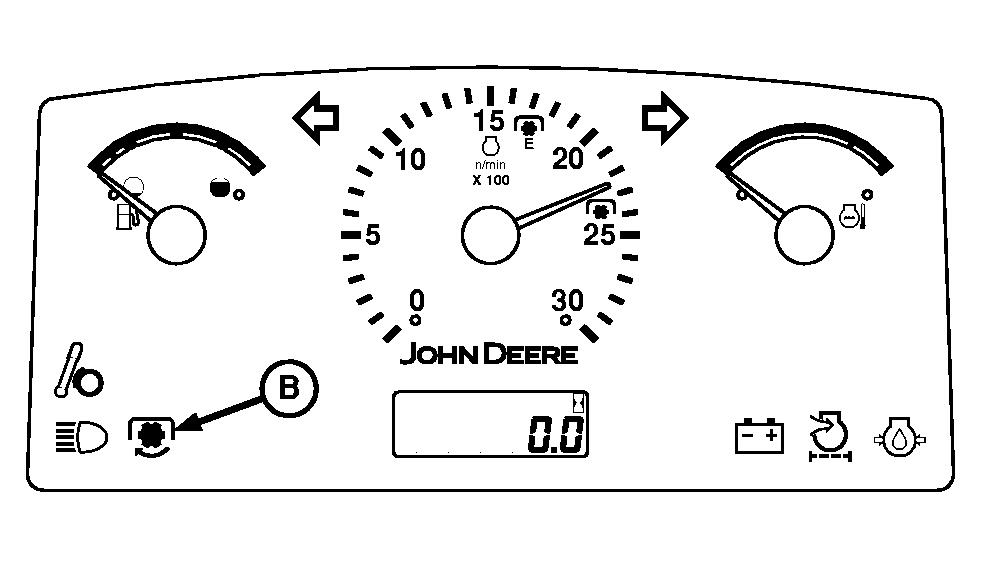

2. Move PTO engagement lever (A) forward to engage PTO. PTO indicator (B) will light when PTO is engaged.

IMPORTANT: A warning alarm will sound for a few seconds if you leave operator's seat with PTO engaged.

causym CAUTION: Turn key off to stop engine and make sure all mechanisms have stopped before cleaning out machine or making any adjustments to PTO driven implement.

3. Pull PTO engagement lever back to disengage PTO.


A-PTO Engagement Lever
B-PTO Indicator

LV722

Open Station

LV4985

Cab

LV8816

Late Model Tractor Shown; Early Model Tractor Similar

AG,OUO1043,205 -19-13NOV03-2/2
