Ballasting Front End for Transport

causym CAUTION: Additional front ballast may be needed for transporting rear-mounted implements. When implement is raised, drive slowly over rough ground, regardless of how much ballast is used.

causym CAUTION: Weights are heavy. Use proper lifting equipment. Approximate weight of starter weights is: 45 kg (100 lb) for 5320N and 125 kg (275 lb) for 5420N and 5520N. Approximate weight of QUIK-TATCH ™ weights is 45 kg (100 lb).

Specification

Front End Ballast-5320N Starter -Weight 45 kg (100 lb) Each
Front End Ballast-5420N and 5520N Starter -Weight 125 kg (275 lb) Each
Front End Ballast-QUIK-TATCH™ -Weight 45 kg (100 lb) Each

Installing QUIK-TATCH ™ Weights: QUIK-TATCH™ weights can be installed on the front of the tractor.

5320N: One starter weight and up to 8 QUIK-TATCH ™ weights can be installed.

5420N and 5520N: One starter weight and up to 10 QUIK-TATCH ™ weights can be installed.

1. Install weights in pairs, one on each side of center (A).

2. To hold weights in place, run retaining bolts (B) through holes from side-to-side. Tighten to specification.

Specification

Ballast Weights Retaining Bolts -Torque 230 N·m (170 lb-ft)

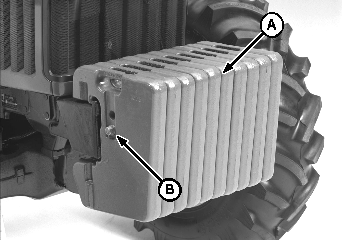

LV1747


A-Ballast Center
B-Ballast Retaining Bolts
